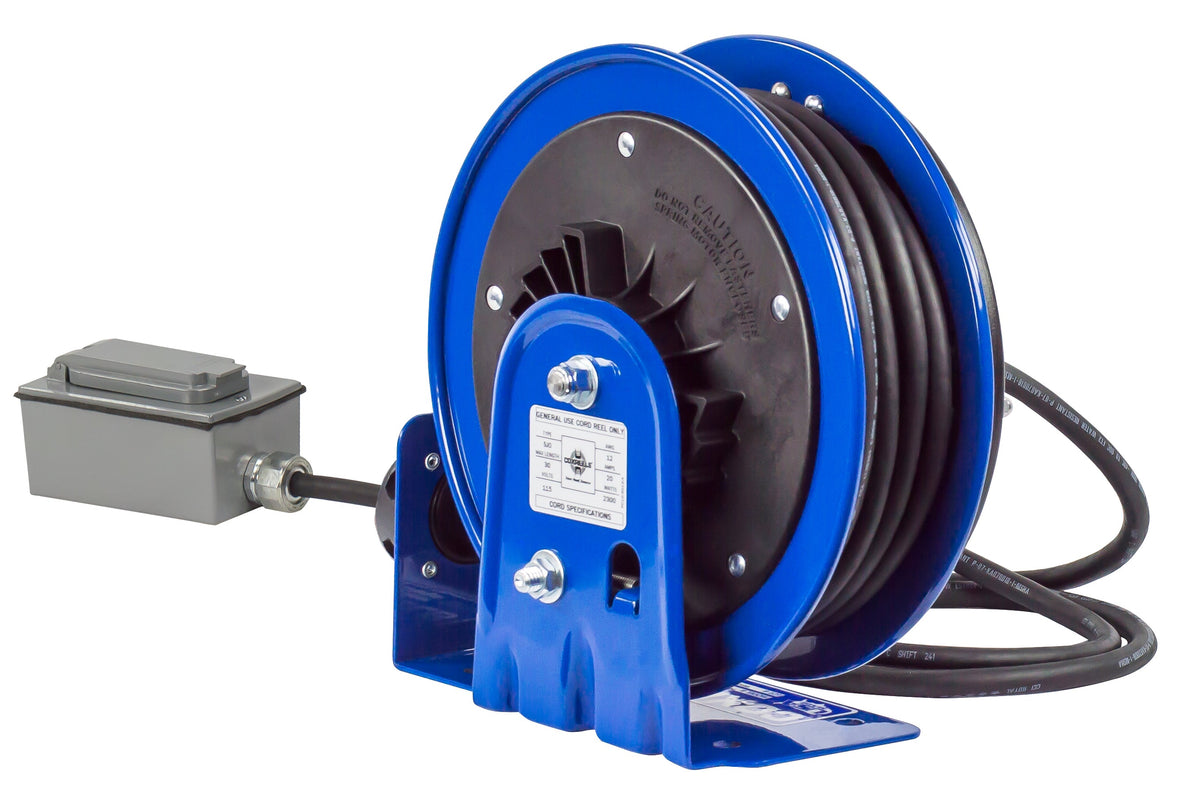

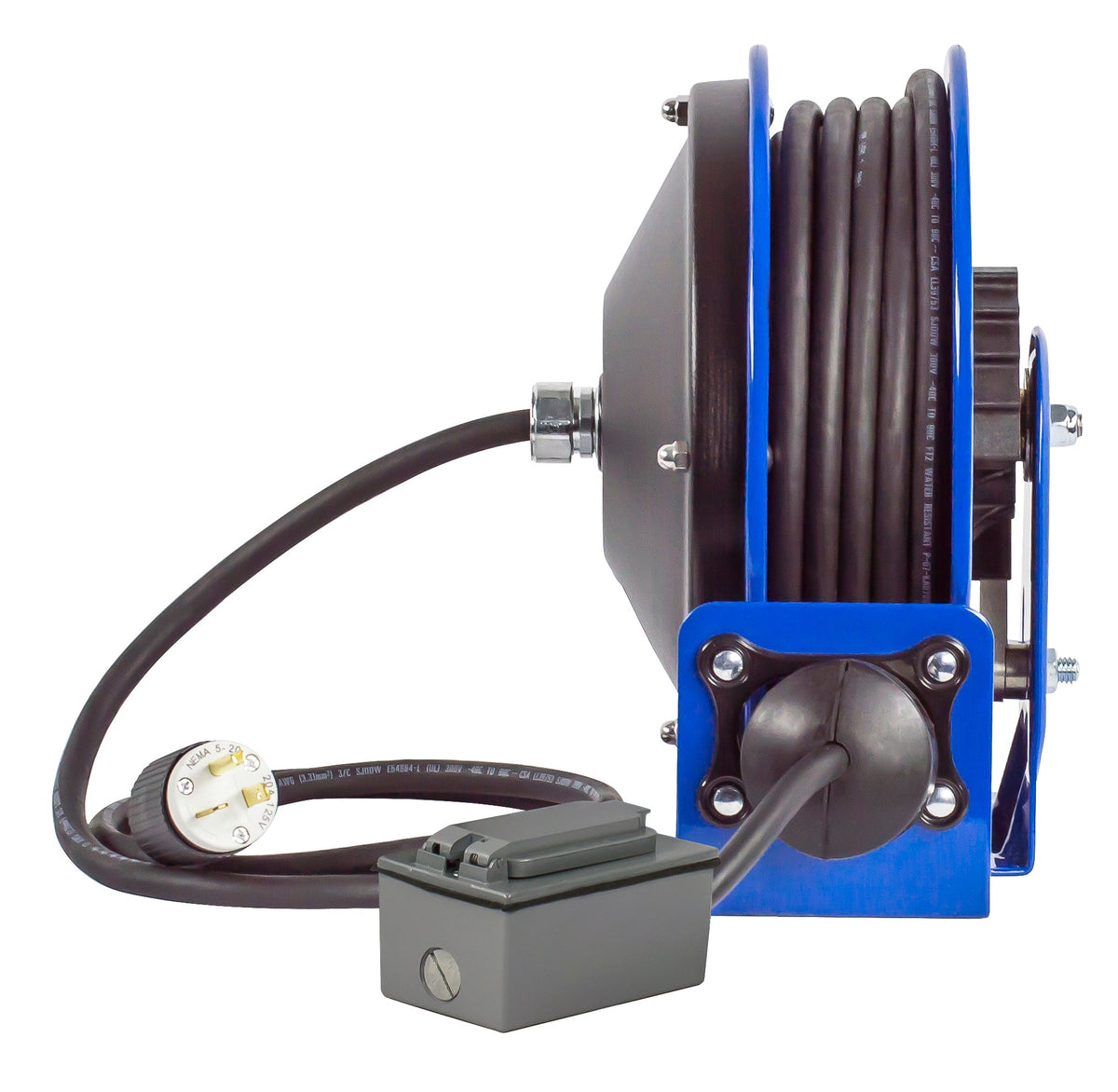

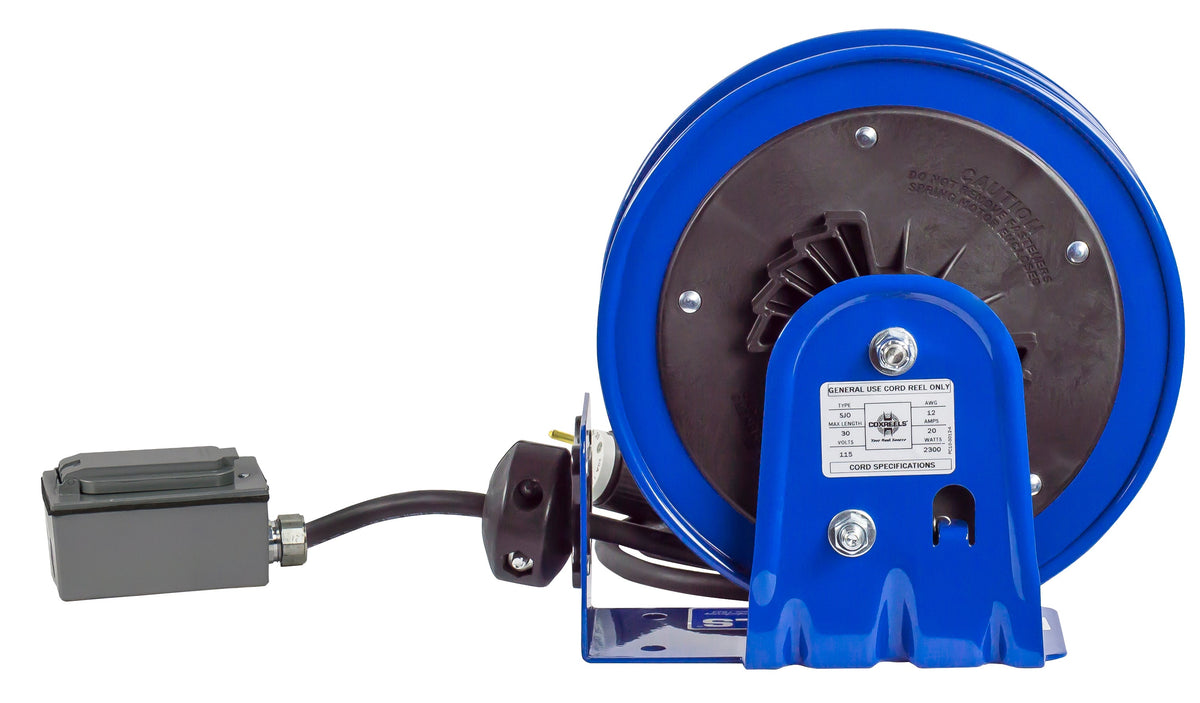

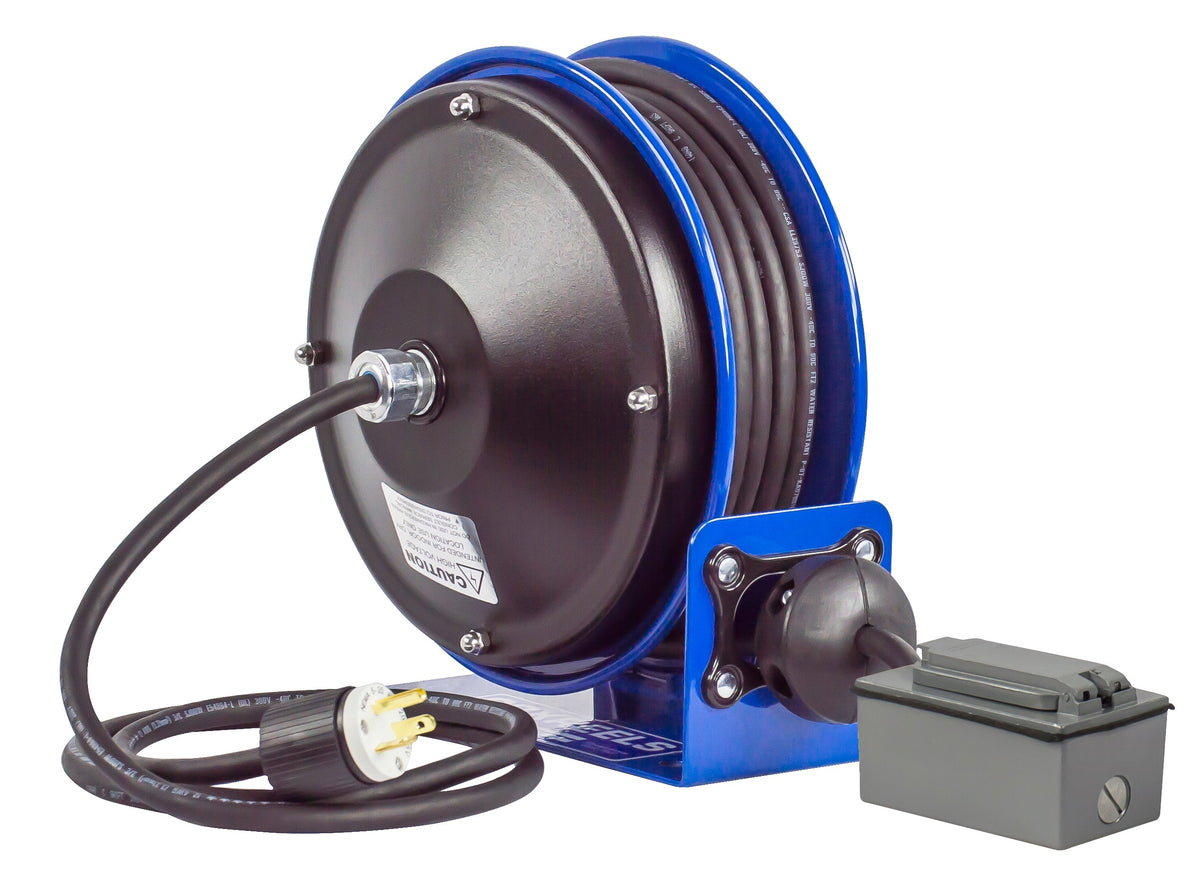

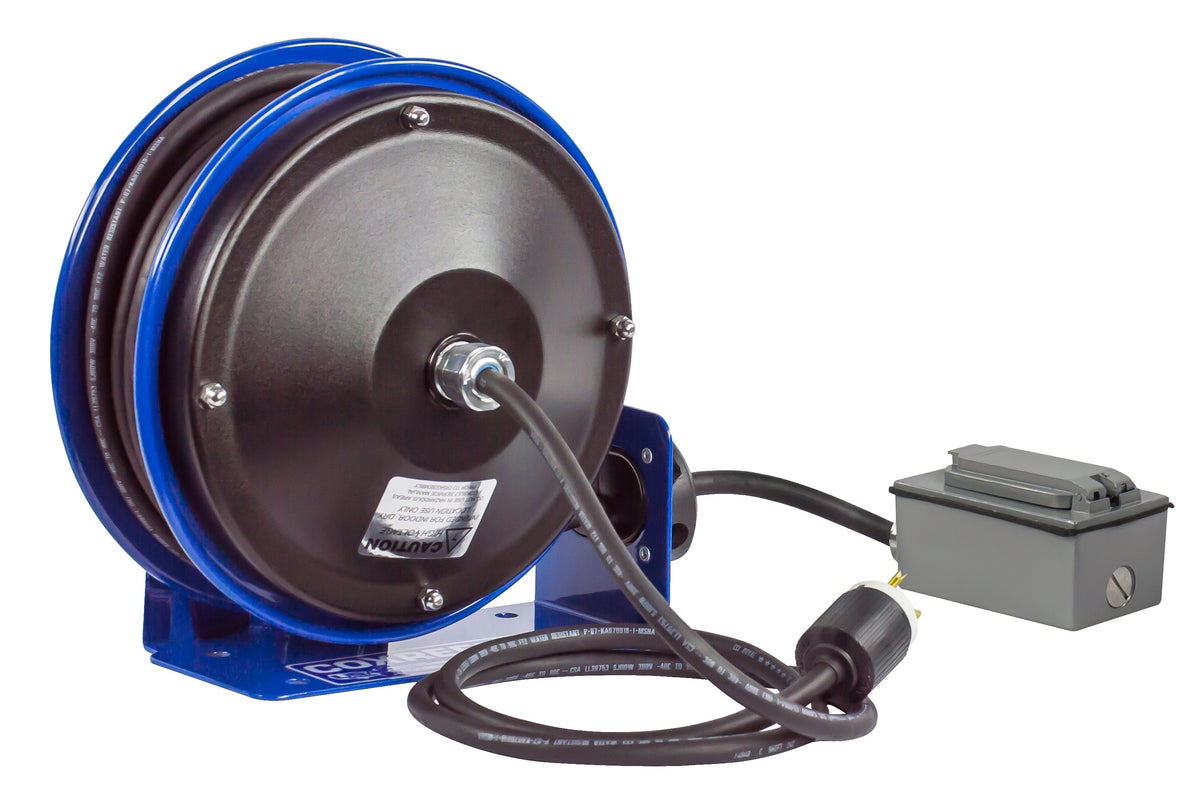

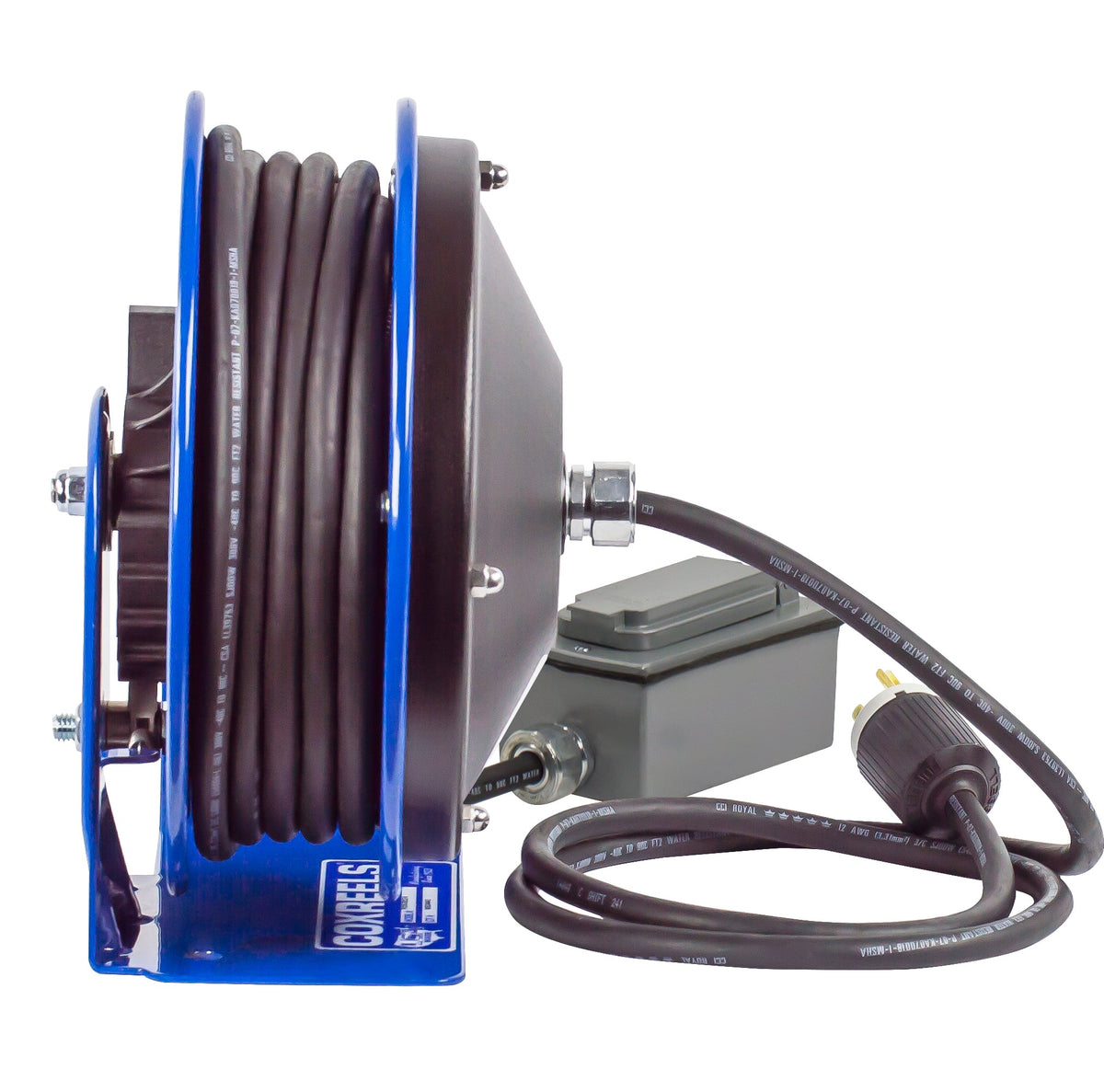

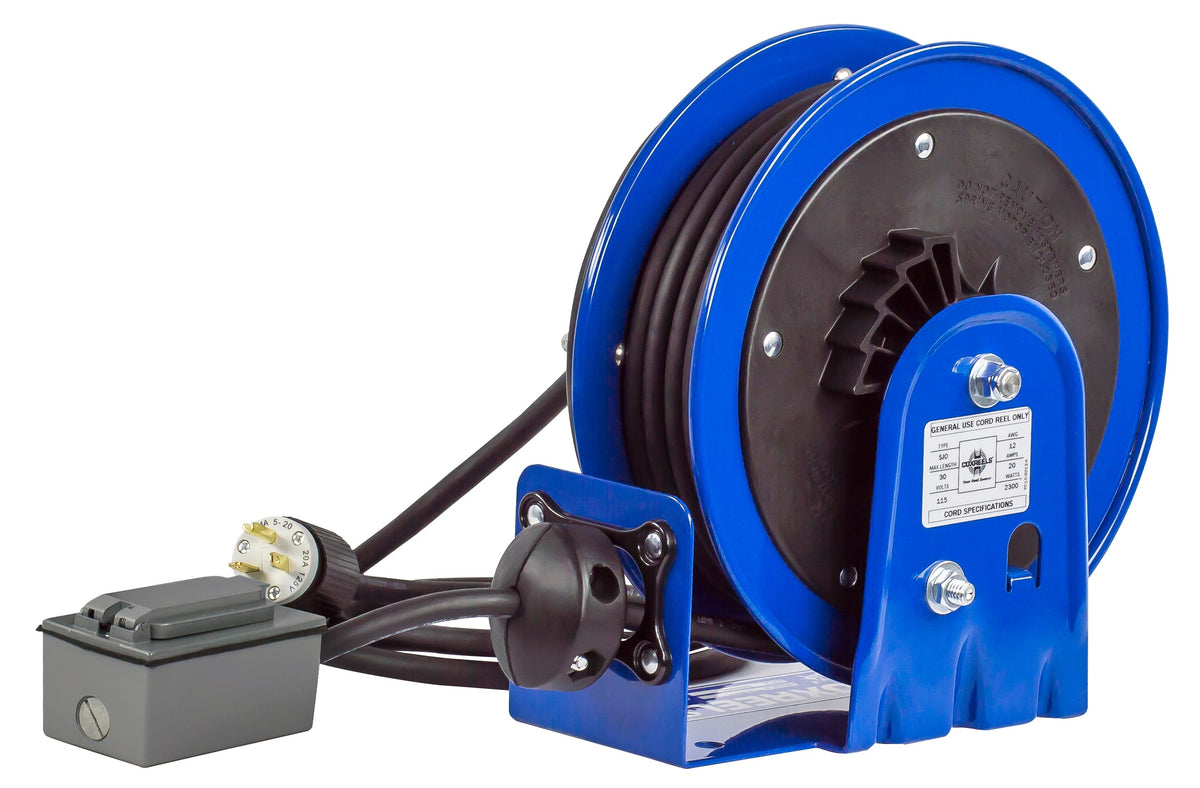

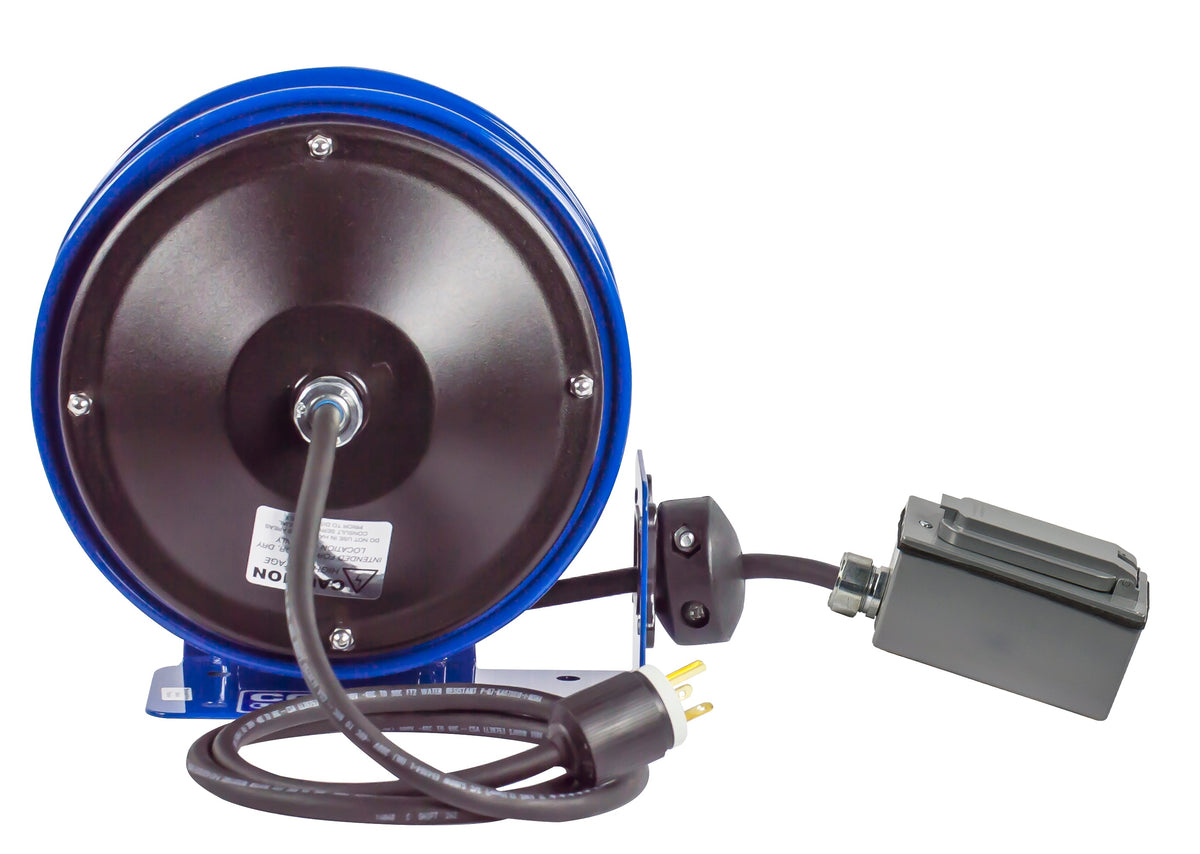

PC10-3012-F by Coxreels | PC10 Series | Spring Driven Power Cord Reel with Duplex GFCI Receptacle | 12/3 SJO Cord, 20A, 115V | Steel | 30ft Cord Included
Coxreels PC10 Series Spring Driven Cord Reels
Steel single-pedestal spring driven cord reels for electric cord. Made in the U.S.A.
1
What is this product used for?
- Electric Cord
2
What are the key specifications?
Steel, single-pedestal
1/2" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.41"
7.375 × 10.625 × 10.5 in
3
What are the main product features?
- Component Cover — External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- Ratchet Hub — Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 12Ga Steel Base — Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
- Grommet — CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
4
Which models are available?
| Part # | Cord | Type | Length | Amps |
|---|---|---|---|---|
| PC10-2512-4 | 12/3 | SJO | 25 ft | 20 |
| PC10-3012-A | 12/3 | SJO | 30 ft | 20 |
| PC10-3012-B | 12/3 | SJO | 30 ft | 20 |
| PC10-3012-F | 12/3 | SJO | 30 ft | 20 |
| PC10-3012-X | 12/3 | SJO | 30 ft | 20 |
| PC10-3016-4 | 16/3 | SJO | 30 ft | 13 |
| PC10-3016-A | 16/3 | SJO | 30 ft | 13 |
| PC10-3016-E | 16/3 | SJTO | 30 ft | 13 |
| PC10-3016-F | 16/3 | SJO | 30 ft | 13 |
| PC10-3016-X | 16/3 | SJO | 30 ft | 13 |
| PC10L-3012 | 12/3 | SJO | 30 ft | 20 |
| PC10L-3016 | 16/3 | SJO | 30 ft | 13 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
