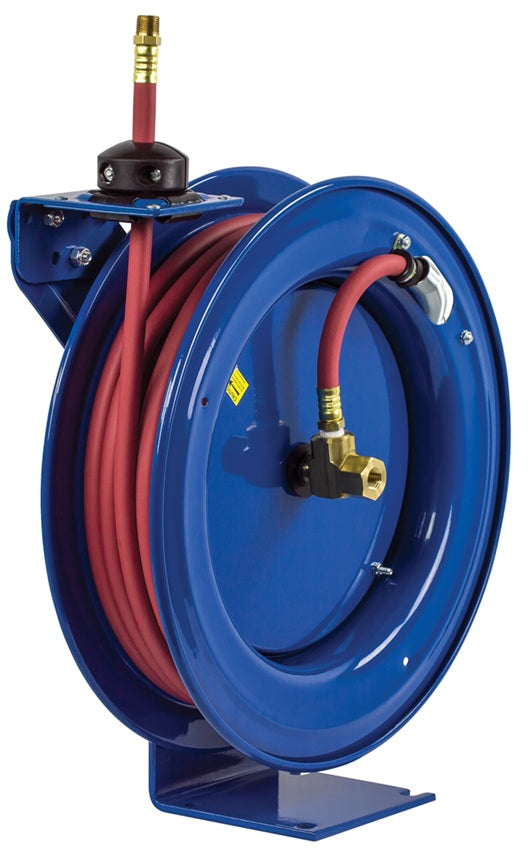

P3835 by Dixon Valve | P Series | Low Pressure Spring Driven Hose Reel - with Hose | 3/8" Hose ID | 35ft Hose Length

P3835 by Dixon Valve | P Series | Low Pressure Spring Driven Hose Reel - with Hose | 3/8" Hose ID | 35ft Hose Length

Sale price$637.32

Dixon Valve
P-Series Low Pressure Spring Driven Hose Reel

Made in the U.S.A.
Buy More, Save More!
Quantity Price Each
5–14 $599.08
15–29 $541.72
30+ $477.99
Discounts applied in cart/checkout.

Product Data:

Series:
  • P Series
Applications:
  • Air, Water
Construction:
  • Professional grade heavy-duty steel construction.
  • 1" solid steel axle & lubricated precision bearings for smooth rotation.
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
  • Blue powder coat.
Features:
  • Rolled edges and ribbed discs provide strength and safety.
  • Compact space-saving size and heavy-duty construction make it highly versatile.
  • Multi-position lock ratchet mechanism secures hose at desired length.
Specifications:
  • Maximum temperature 150°F (66°C)
  • Pressure Rating: 300 PSI at 70°F (21°C)
Reel With Hose
Part Number Hose I.D. Hose Length Service Working
Pressure
PSI
@70°F
P2550 1/4" 50ft Air / Water 300 PSI
P3835 3/8" 35ft Air / Water 300 PSI
P3850 3/8" 50ft Air / Water 300 PSI
P5050 1/2" 50ft Air / Water 300 PSI
Reel Without Hose
Part Number Hose Capacity Service Working
Pressure
PSI
@70°F
P2550N 50ft of 1/4" Air / Water 300 PSI
P3875N 50ft of 3/8" Air / Water 300 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
