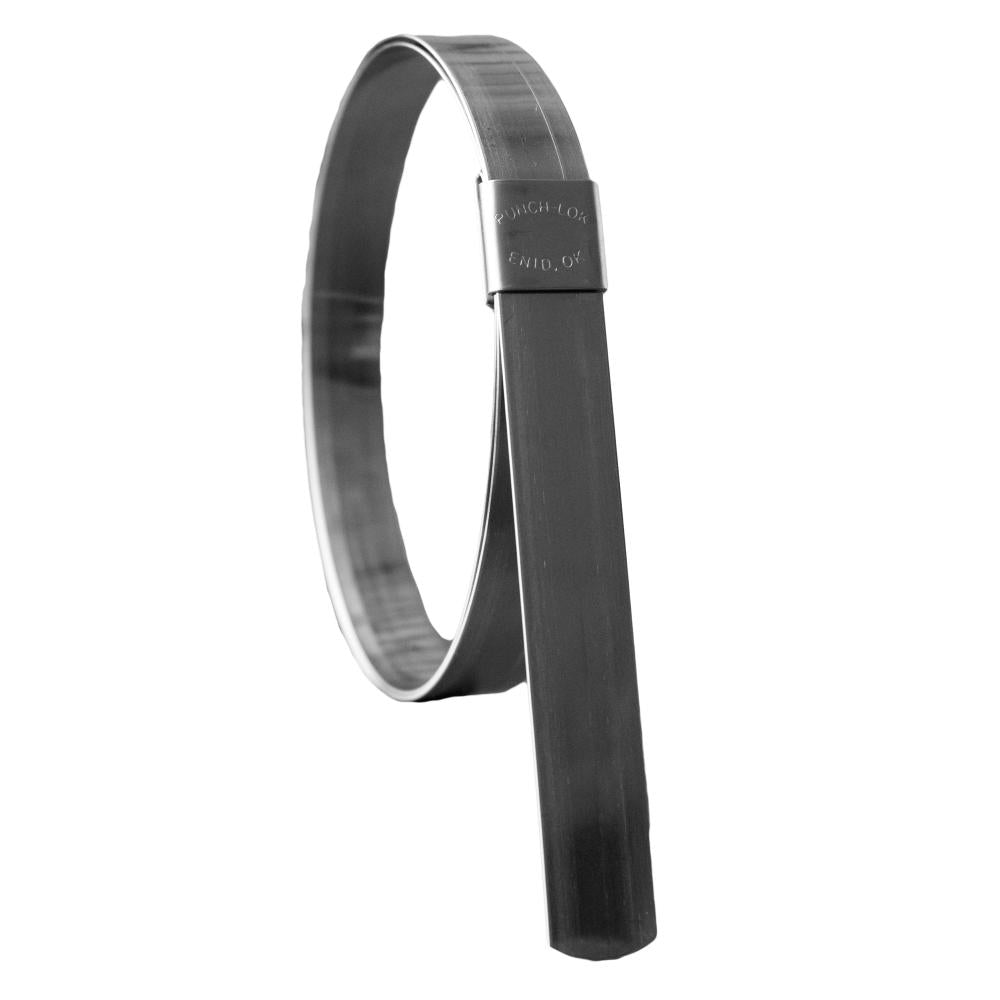

P170500 (BP5S) PUNCH-LOK® by PT-Coupling | Pre-Formed Punch-Type Clamp | 1-1/4" Clamp ID | 5/8" Band Width | 201 Stainless Steel | 500 Pieces/Box (Bulk)

P170500 (BP5S) PUNCH-LOK® by PT-Coupling | Pre-Formed Punch-Type Clamp | 1-1/4" Clamp ID | 5/8" Band Width | 201 Stainless Steel | 500 Pieces/Box (Bulk)

Sale price$730.52

PT Coupling
PUNCH-LOK® | Pre-Formed Punch-Type Clamp | 201 Stainless Steel

Double-wrapped and formed to a given diameter.

Clamps come ready for application.

Made in the USA.

Package Quantity: 500 Units

Buy More, Save More!
Quantity Price Each
5–14 $686.69
15–29 $620.94
30+ $547.89
Discounts applied in cart/checkout.

Product Data:

Brand:
  • PUNCH-LOK
Series:
  • Pre-Formed Punch-Type Clamps
Shape:

Straight
Features:
  • Double-wrapped and formed to a given diameter.
  • Clamps come ready for application.
  • Made in the USA
To Order:
  • Measure the Outside Diameter of the hose with its fitting inserted.
  • Then select the next larger Inside Diameter clamp by catalog number. Using the hose size in inches is not sufficient information, because different thickness of hose will result in varying outside diameters.
Accessories:
  • To apply, use PUNCH-LOK® banding tool:
    P-1000™ For 5/8 Punch Clamps
    P-3000™ For 3/8 Punch Clamps Only
    P-38™ Master Tool Set for 3/8 Punch Clamps
    TA-3 Tool Tension Air Automatic Clamping Machine
Clamp ID Band Width Standard Pack Bulk Pack
Part
Name		 Item # Quantity/Carton Part
Name		 Item # Quantity/Box
13/16" 3/8" P3S P110300 100 - - -
1" 3/8" P310S P110310 100 - - -
1-3/8" 3/8" P311S P110311 100 - - -
2" 3/8" P316S P110316 100 - - -
1" 5/8" P4S P110400 100 - - -
1-1/4" 5/8" P5S P110500 100 BP5S P170500 500
1-1/2" 5/8" P6S P110600 100 - - -
1-3/4" 5/8" P7S P110700 100 BP7S P170700 500
2" 5/8" P8S P110800 100 BP8S P170800 500
2-1/4" 5/8" P9S P110900 100 BP9S P170900 500
2-1/2" 5/8" P10S P111000 50 BP10S P171000 500
2-3/4" 5/8" P11S P111100 50 BP11S P171100 250
3" 5/8" P12S P111200 50 BP12S P171200 250
3-1/2" 5/8" P14S P111400 50 BP14S P171400 250
4" 5/8" P16S P111600 25 BP16S P171600 250
4-1/2" 5/8" P18S P111800 25 BP18S P171800 250
5" 5/8" P20S P112000 25 BP20S P172000 250
6" 5/8" P24S P112400 25 BP24S P172400 125
6-1/2" 5/8" P26S P112600 50 BP26S P172600 125
7" 5/8" P28S P112800 50 BP28S P172800 100
8" 5/8" P32S P113200 50 BP32S P173200 100

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
