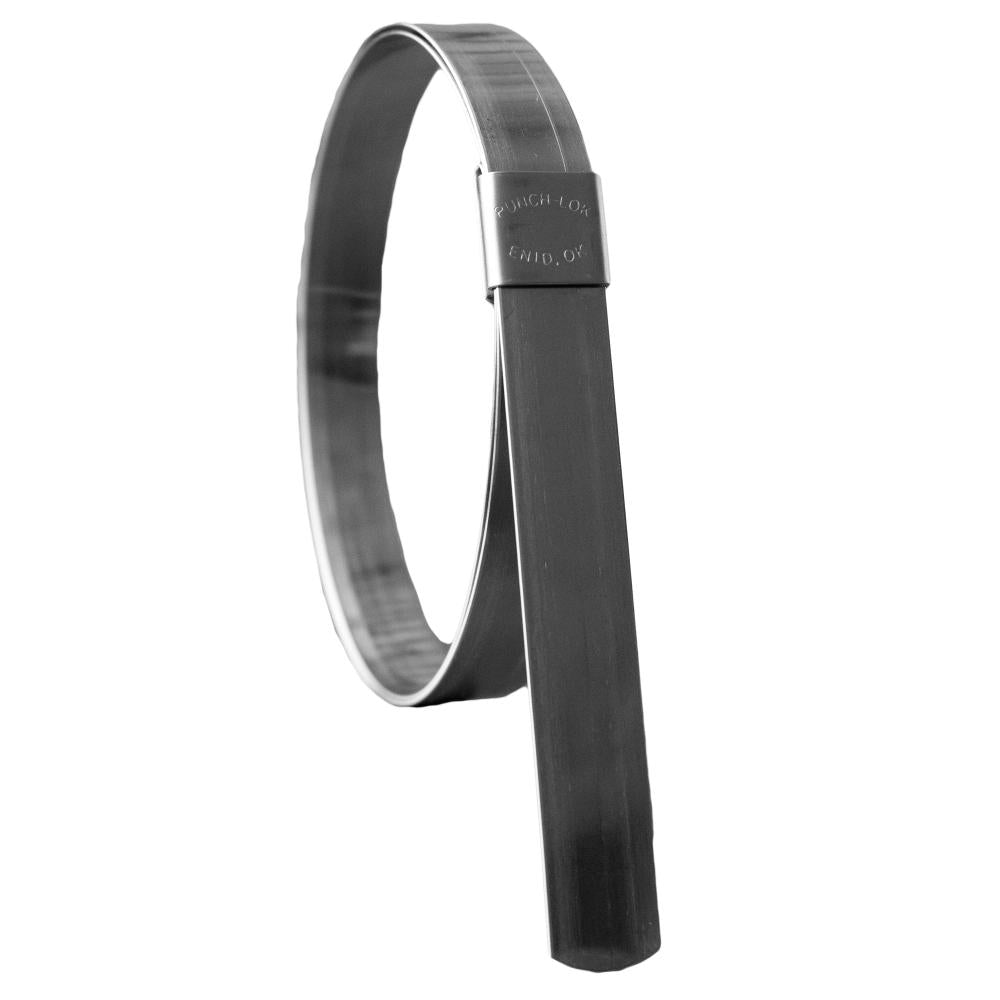

P160500 (BP5) PUNCH-LOK® by PT-Coupling | Pre-Formed Punch-Type Clamp | 1-1/4" Clamp ID | 5/8" Band Width | Galvanized Carbon Steel | 500 Pieces/Box (Bulk)

P160500 (BP5) PUNCH-LOK® by PT-Coupling | Pre-Formed Punch-Type Clamp | 1-1/4" Clamp ID | 5/8" Band Width | Galvanized Carbon Steel | 500 Pieces/Box (Bulk)

Sale price$344.94

PT Coupling
PUNCH-LOK® | Pre-Formed Punch-Type Clamp | Galvanized Carbon Steel

Double-wrapped and formed to a given diameter.

Clamps come ready for application.

Made in the USA.

Package Quantity: 500 Units

Buy More, Save More!
Quantity Price Each
5–14 $324.24
15–29 $293.20
30+ $258.71
Discounts applied in cart/checkout.

Product Data:

Brand:
  • PUNCH-LOK
Series:
  • Pre-Formed Punch-Type Clamps
Shape:

Straight
Features:
  • Double-wrapped and formed to a given diameter.
  • Clamps come ready for application.
  • Made in the USA
To Order:
  • Measure the Outside Diameter of the hose with its fitting inserted.
  • Then select the next larger Inside Diameter clamp by catalog number. Using the hose size in inches is not sufficient information, because different thickness of hose will result in varying outside diameters.
Accessories:
  • To apply, use PUNCH-LOK® banding tool:
    P-1000™ For 5/8 Punch Clamps
    P-3000™ For 3/8 Punch Clamps Only
    P-38™ Master Tool Set for 3/8 Punch Clamps
    TA-3 Tool Tension Air Automatic Clamping Machine
Clamp ID Band Width Standard Pack Bulk Pack
Part
Name		 Item # Quantity/Carton Part
Name		 Item # Quantity/Box
13/16" 3/8" P3 P100300 100 - - -
1" 3/8" P310 P100310 100 - - -
1-3/8" 3/8" P311 P100311 100 - - -
2" 3/8" P316 P100316 100 - - -
1" 5/8" P4 P100400 100 BP4 P160400 500
1-1/4" 5/8" P5 P100500 100 BP5 P160500 500
1-1/2" 5/8" P6 P100600 100 BP6 P160600 500
1-3/4" 5/8" P7 P100700 100 BP7 P160700 500
2" 5/8" P8 P100800 100 BP8 P160800 500
2-1/4" 5/8" P9 P100900 100 BP9 P160900 500
2-1/2" 5/8" P10 P101000 50 BP10 P161000 500
2-3/4" 5/8" P11 P101100 50 BP11 P161100 250
3" 5/8" P12 P101200 50 BP12 P161200 250
3-1/2" 5/8" P14 P101400 50 BP14 P161400 250
4" 5/8" P16 P101600 25 BP16 P161600 250
4-1/2" 5/8" P18 P101800 25 BP18 P161800 250
5" 5/8" P20 P102000 25 BP20 P162000 250
6" 5/8" P24 P102400 25 BP24 P162400 125
6-1/2" 5/8" P26 P102600 50 - - -
7" 5/8" P28 P102800 50 BP28 P162800 100
8" 5/8" P32 P103200 50 BP32 P163200 100
