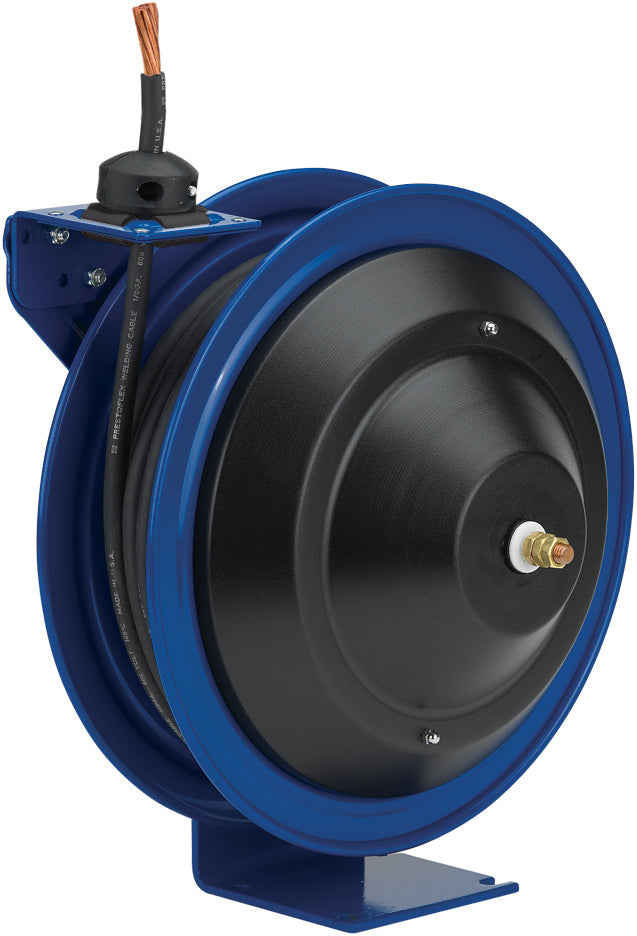

P-WC17-5001 by Coxreels | P-WC Series | Spring Driven Welding Cable Reel | #1 Cable, 300A | Steel | 50ft Cable Included
Coxreels P-WC Series Spring Driven Cable Reels
Steel single-pedestal spring driven cable reels for arc welding and grounding. Made in the U.S.A.
1
What is this product used for?
- Arc Welding & Grounding
2
What are the key specifications?
Steel, single-pedestal
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5" mounting holes
3
What are the main product features?
- Component Cover — External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.Exclusive Super Hub™dual axle support system.
- Multi-Position Guide Arm — Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Cable | Length | Amps | Reel W × H × L (in) |
|---|---|---|---|---|
| P-WC13-2501 | 1GA | 25 ft | 300 | 8.5 × 14.5 × 13.75 |
| P-WC13-2510 | 1/0 | 25 ft | 350 | 8.5 × 14.5 × 13.75 |
| P-WC13-3502 | 2GA | 35 ft | 225 | 8.5 × 14.5 × 13.75 |
| P-WC13-3504 | 4GA | 35 ft | 150 | 8.5 × 14.5 × 13.75 |
| P-WC13-3506 | 6GA | 35 ft | 75 | 8.5 × 14.5 × 13.75 |
| P-WC13-5004 | 4GA | 50 ft | 150 | 8.5 × 14.5 × 13.75 |
| P-WC13-5006 | 6GA | 50 ft | 75 | 8.5 × 14.5 × 13.75 |
| P-WC13L-2501 | 1GA | 25 ft | 300 | 8.5 × 14.5 × 13.75 |
| P-WC13L-2510 | 1/0 | 25 ft | 350 | 8.5 × 14.5 × 13.75 |
| P-WC13L-3502 | 2GA | 35 ft | 225 | 8.5 × 14.5 × 13.75 |
| P-WC13L-3504 | 4GA | 35 ft | 150 | 8.5 × 14.5 × 13.75 |
| P-WC13L-3506 | 6GA | 35 ft | 75 | 8.5 × 14.5 × 13.75 |
| P-WC13L-5004 | 4GA | 50 ft | 150 | 8.5 × 14.5 × 13.75 |
| P-WC13L-5006 | 6GA | 50 ft | 75 | 8.5 × 14.5 × 13.75 |
| P-WC17-3520 | 2/0 | 50 ft | 450 | 11 × 18.25 × 17.25 |
| P-WC17-5001 | 1GA | 50 ft | 300 | 11 × 18.25 × 17.25 |
| P-WC17-5002 | 2GA | 50 ft | 225 | 11 × 18.25 × 17.25 |
| P-WC17-5010 | 1/0 | 50 ft | 350 | 11 × 18.25 × 17.25 |
| P-WC17-5020 | 2/0 | 50 ft | 450 | 11 × 18.25 × 17.25 |
| P-WC17L-3520 | 2/0 | 35 ft | 450 | 11 × 18.25 × 17.25 |
| P-WC17L-5001 | 1GA | 50 ft | 300 | 11 × 18.25 × 17.25 |
| P-WC17L-5002 | 2GA | 50 ft | 225 | 11 × 18.25 × 17.25 |
| P-WC17L-5010 | 1/0 | 50 ft | 350 | 11 × 18.25 × 17.25 |
| P-WC17L-5020 | 2/0 | 50 ft | 450 | 11 × 18.25 × 17.25 |
5
Which accessories are available?
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
P-WC Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
