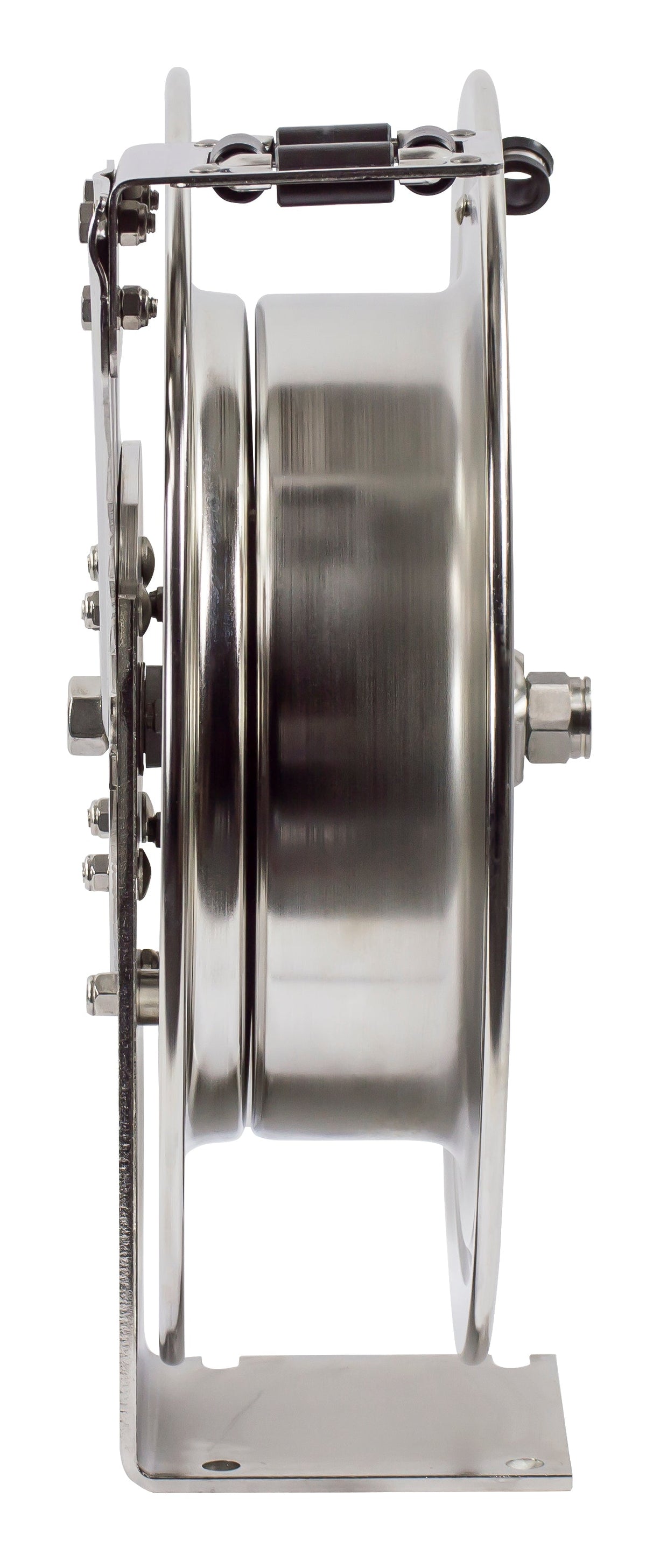

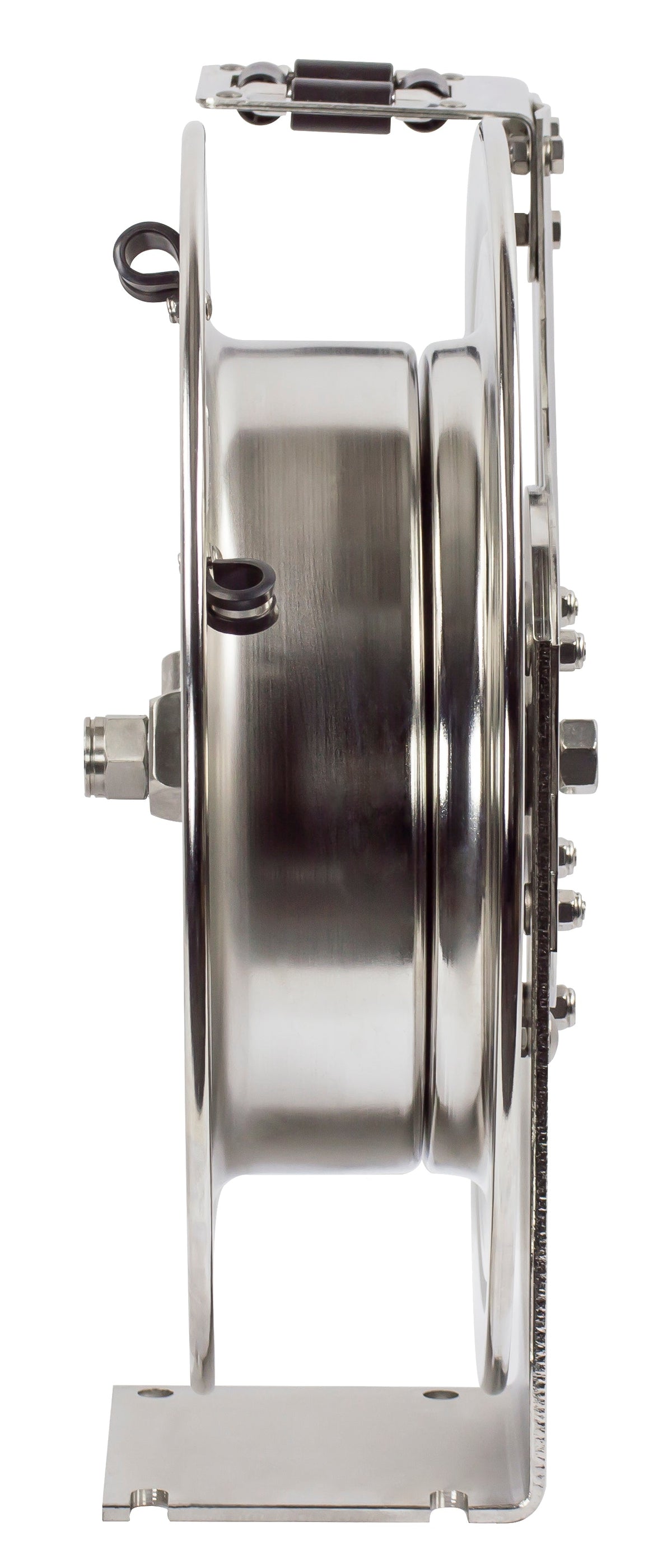

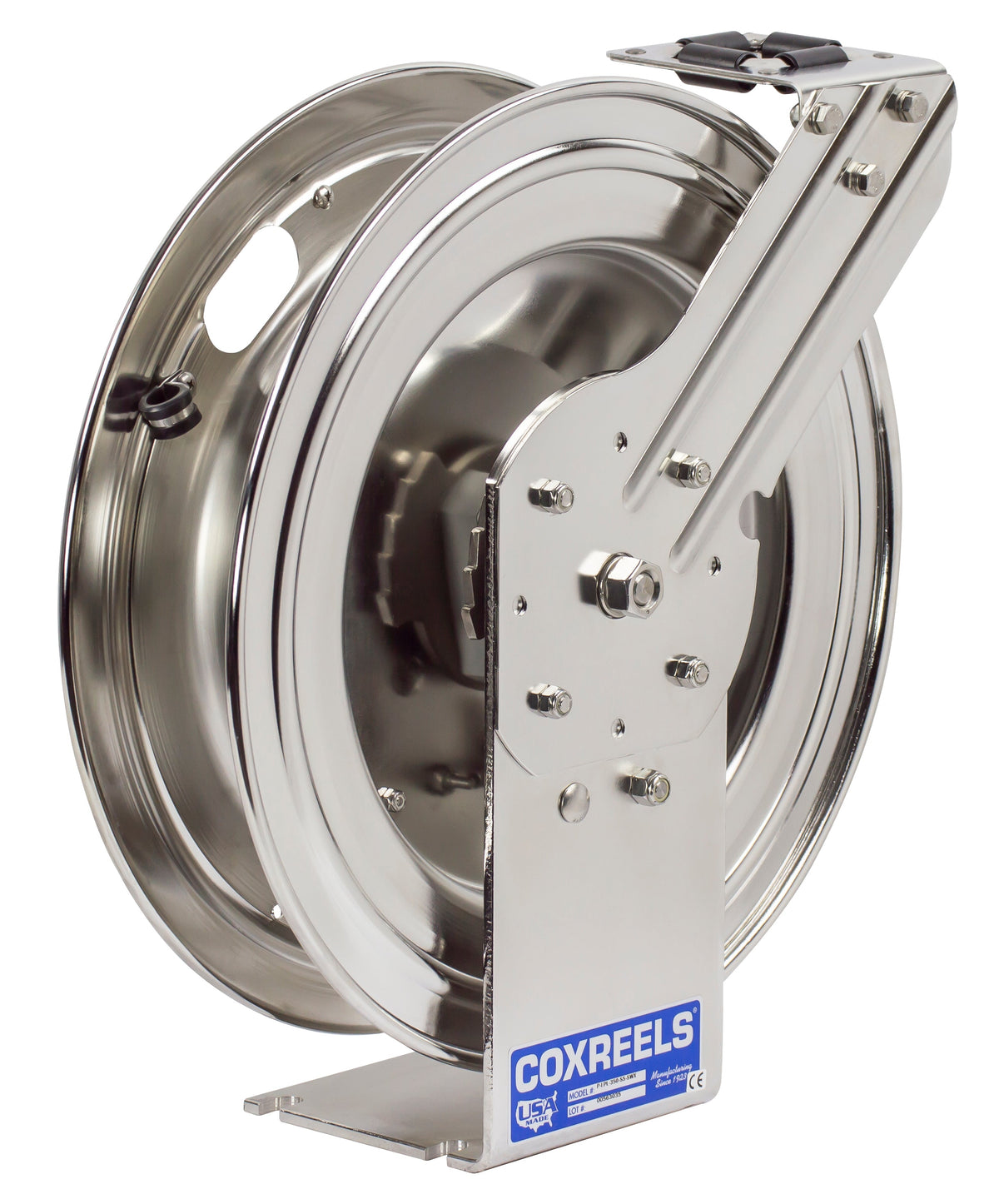

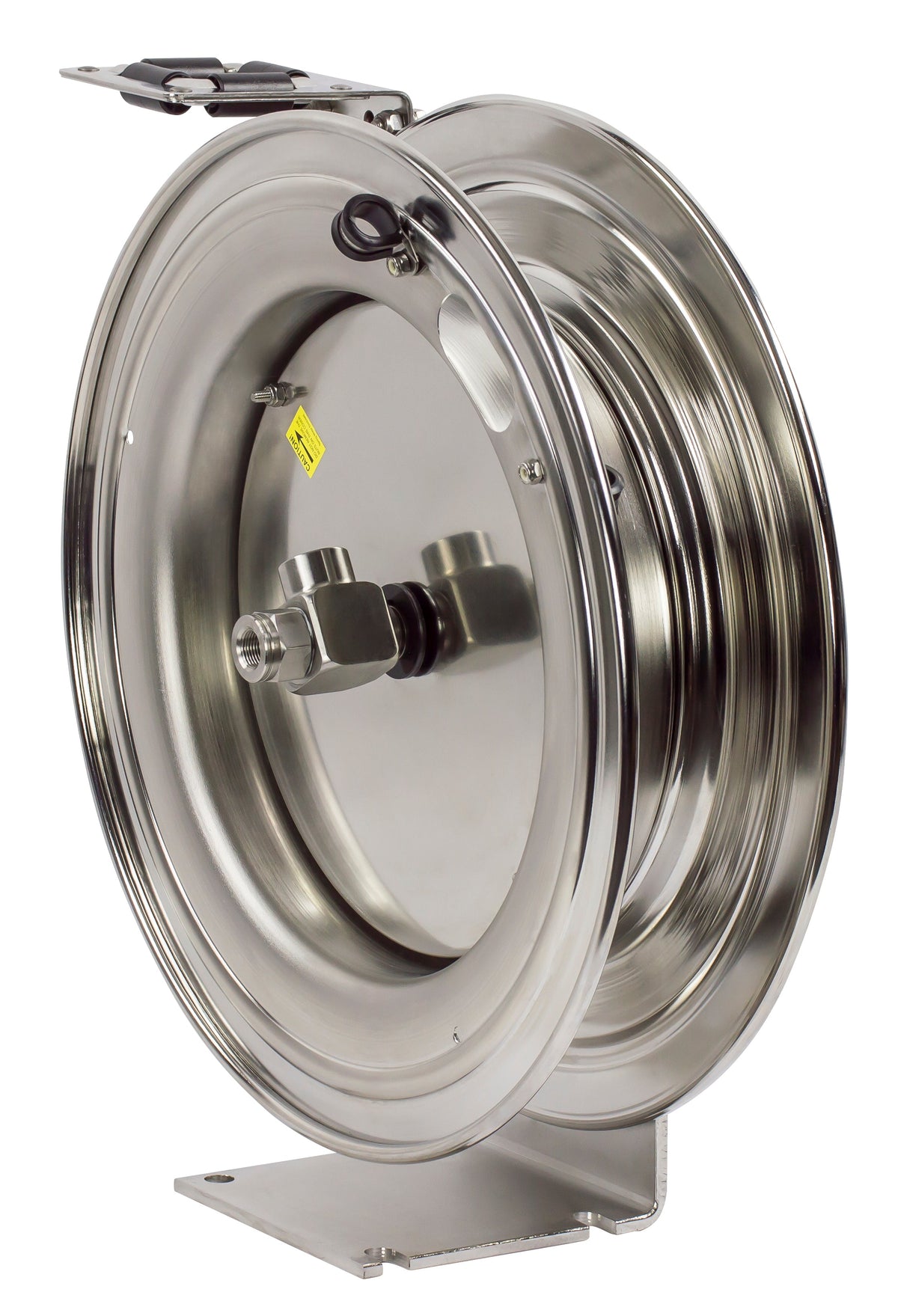

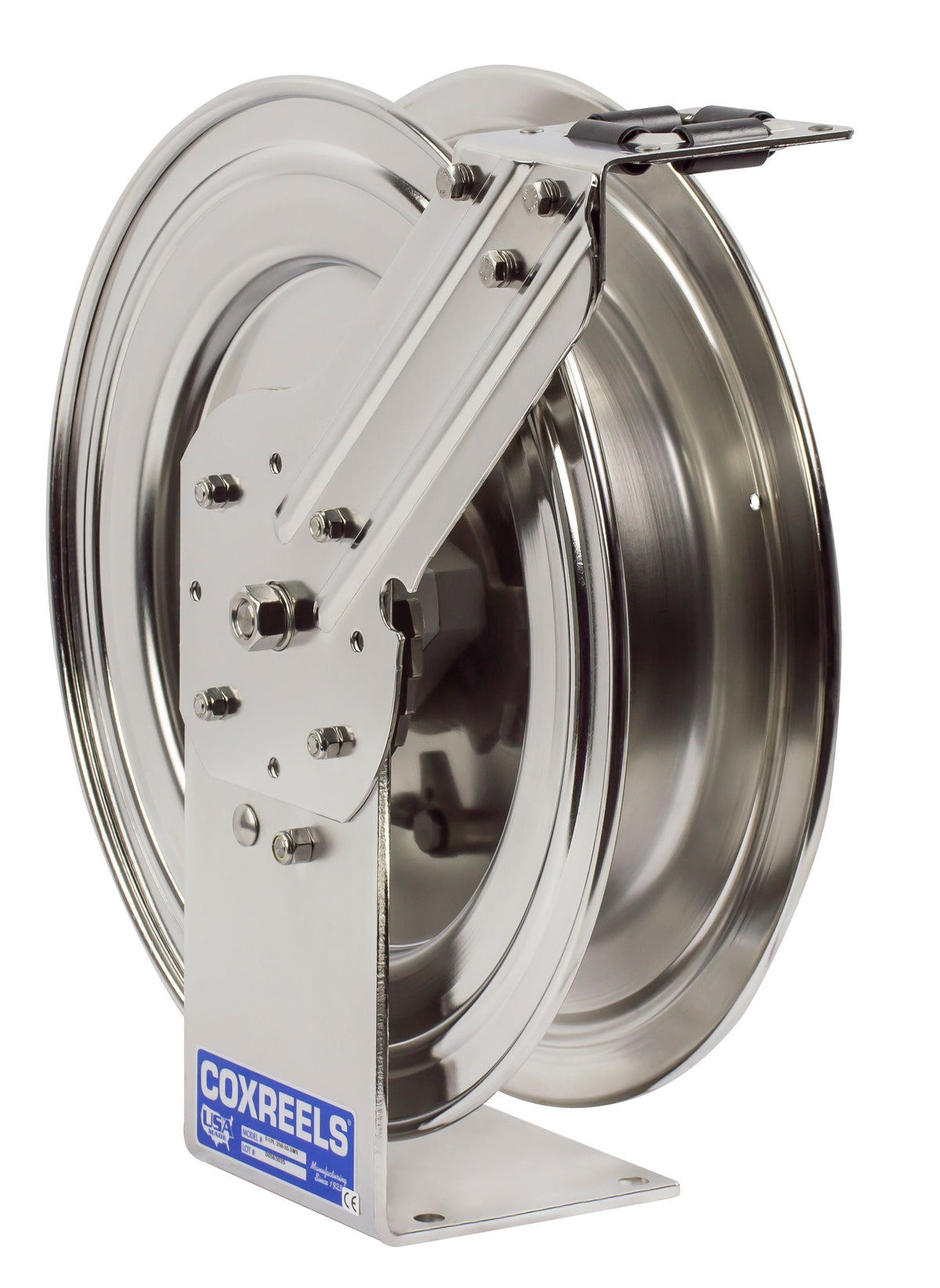

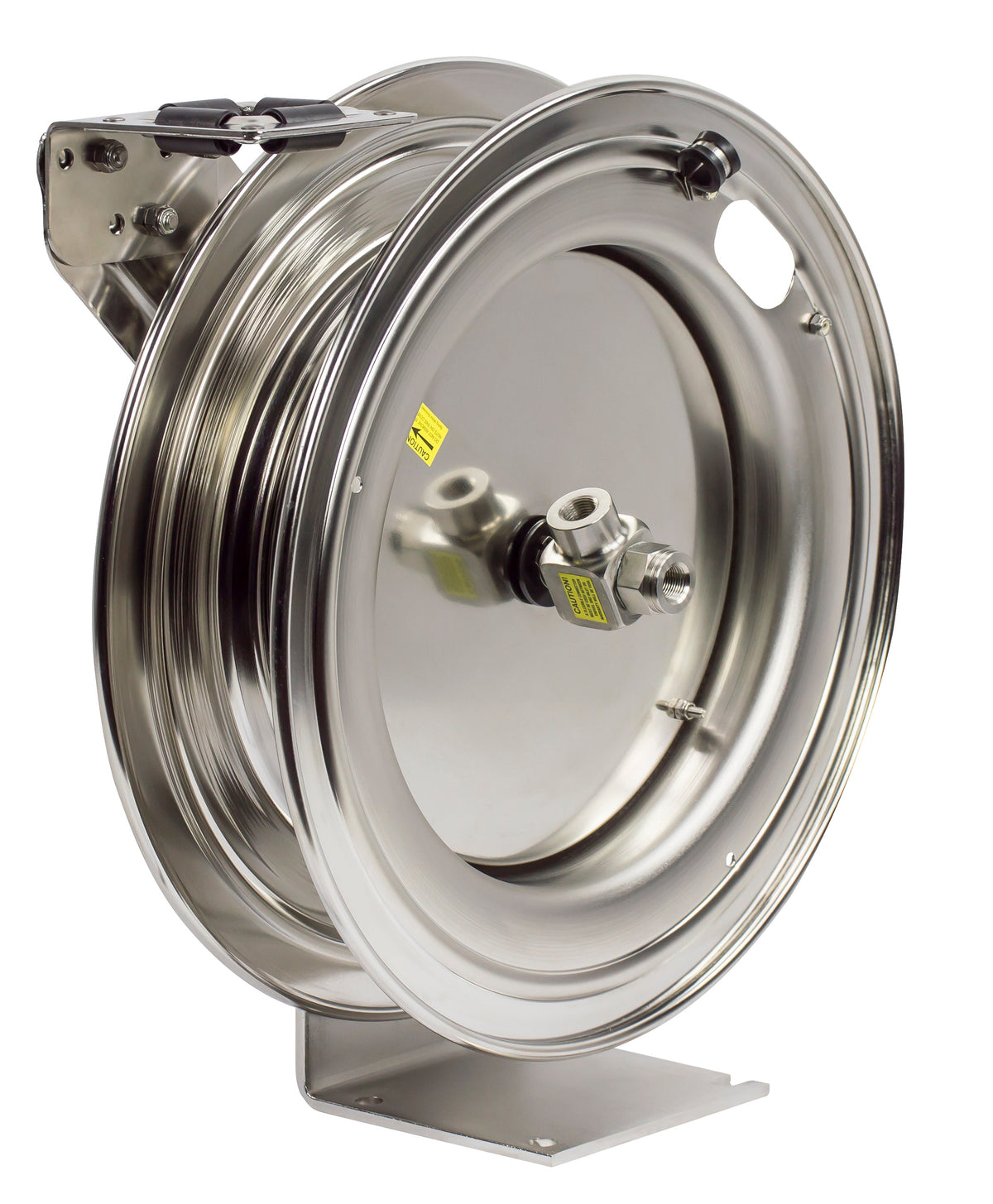

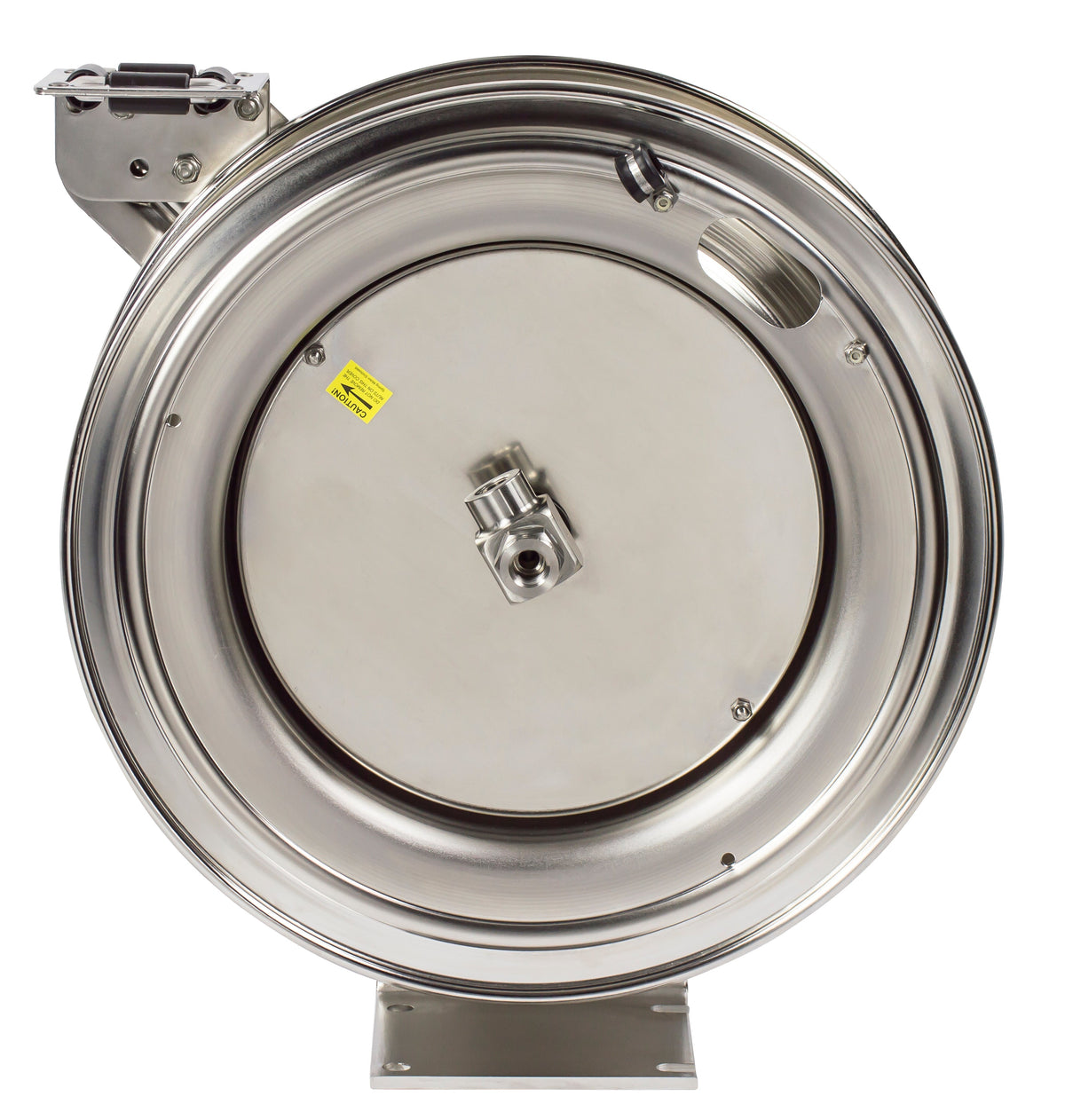

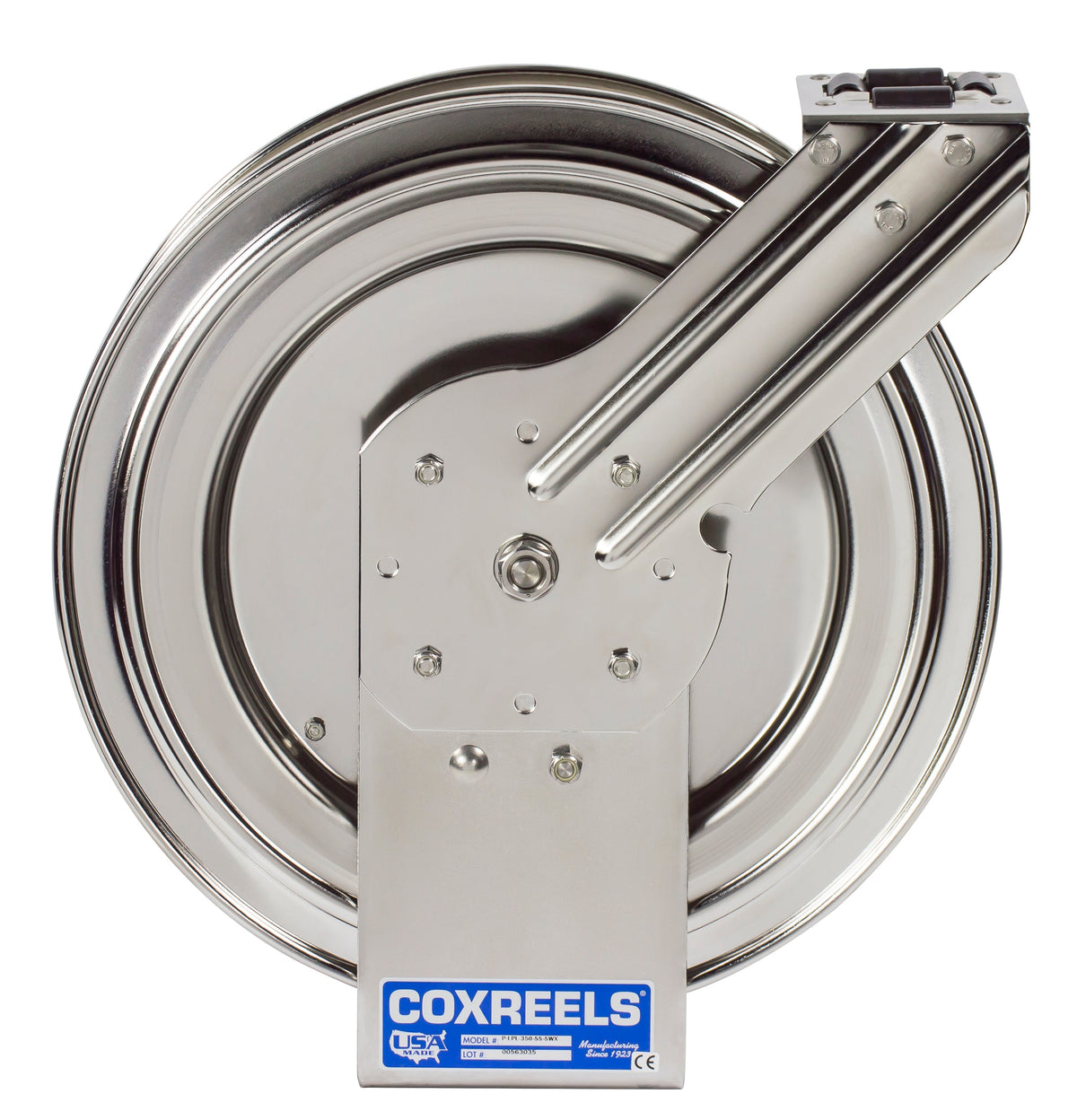

P-LPL-335-SS by Coxreels | P-SS Series | 300 PSI Spring Driven Hose Reel | 3/8" Hose ID, 3/8" FNPT Inlet | Stainless Steel | 35ft Capacity, Hose Not Included
Coxreels P-SS Series Spring Driven Hose Reels
Stainless steel single-pedestal spring driven hose reels for air, water, washdown, pressure washing and pest control, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
- Pressure Washing
- Pest Control
- Spraying Operations
- Chemical Fluid Transfer
- Potable Water
- Clean Fluids
- Breathing Air
2
What are the key specifications?
Stainless Steel, single-pedestal
Stainless Steel 90° full-flow with Nitrile Non-Toxic Food Grade Grease seals
Female NPT, same size as the hose I.D.
250°F
1" Permanently Lubricated Precision Bearings
Electro-polish Stainless Steel
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5"
3
What are the main product features?
- Swivel — Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
- Cartridge Motor — Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Steel Base — Sturdy single pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.
- Multi-Position Guide Arm — Versatile stainless steel guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Reel W × H × L (in) |
|---|---|---|---|---|
| P-LPL-335-SS | 3/8" | 35 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LPL-350-SS | 3/8" | 50 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LPL-425-SS | 1/2" | 25 ft | 300 | 7 × 18.625 × 17.125 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 15720-SS | Swing Bracket | |
| Inlet connections | ||
| 5153-1.5 | 18" inlet hose | Every model except P-LPL-425-SS |
| 5154-1.5 | 18" inlet hose | Every model except P-LPL-335/350-SS |
| Hose end | ||
| 131-3 | Hose/cord stop | Every model except P-LPL-425-SS |
| 131-4 | Hose/cord stop | Every model except P-LPL-335/350-SS |
| 10759-2 | Quick disconnect | Every model except P-LPL-425-SS |
| 237-1 | Spiral hose/cord guard | Every model except P-LPL-425-SS |
| 398-1 | Spiral hose/cord guard | Every model except P-LPL-335/350-SS |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
P-SS Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
