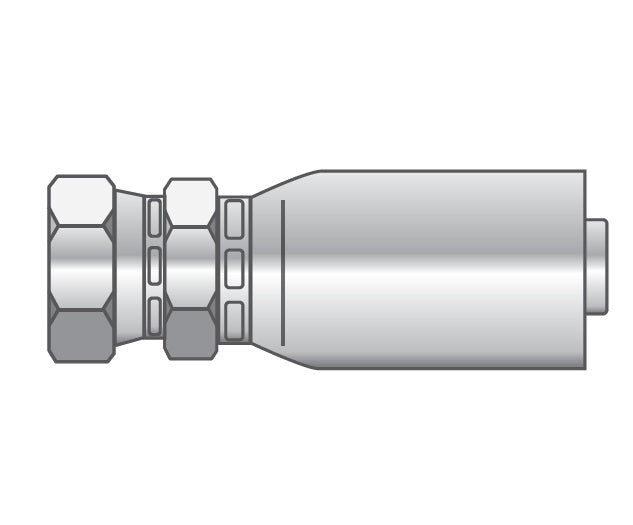

P-0204-FJDH Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -02 Hose ID x -04 Female JIC 37° | Carbon Steel

P-0204-FJDH Alfagomma Piranhaflex™ by Kuriyama | P Series | One-Piece Hydraulic Hose Fitting | -02 Hose ID x -04 Female JIC 37° | Carbon Steel | Pack of 5

Sale price$46.63

Kuriyama of America Inc.
Alfagomma | P Series | One-Piece Hydraulic Hose Fitting | Hose Barb x Female JIC 37° Seat


Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
10–39 $43.83
40–79 $39.64
80+ $34.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • P Series
Shape:

Straight
About P-Series Fittings:
  • One-piece non-skive crimp fitting for use with:
    • Piranhaflex™ PF321TC hose only.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Carbon Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 Hex Dia. Weight
P-0204-FJDH 02 1/8" 3.2mm 04 7/16-20 16.0mm 16mm 13mm 0.07 lbs
P-0404-FJDH 04 1/4" 6.4mm 04 7/16-20 27.8mm 16mm 16mm 0.14 lbs
P-0405-FJDH 04 1/4" 6.4mm 05 1/2-20 27.2mm 16mm 19mm 0.16 lbs
P-0406-FJDH 04 1/4" 6.4mm 06 9/16-18 26.8mm 16mm 19mm 0.15 lbs
P-0605-FJDH 06 3/8" 9.5mm 05 1/2-20 29.8mm 16mm 19mm 0.20 lbs
P-0606-FJDH 06 3/8" 9.5mm 06 9/16-18 29.8mm 19mm 19mm 0.20 lbs
P-0608-FJDH 06 3/8" 9.5mm 08 3/4-16 30.6mm 19mm 24mm 0.22 lbs
P-0808-FJDH 08 1/2" 12.7mm 08 3/4-16 33.9mm 22mm 24mm 0.32 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
