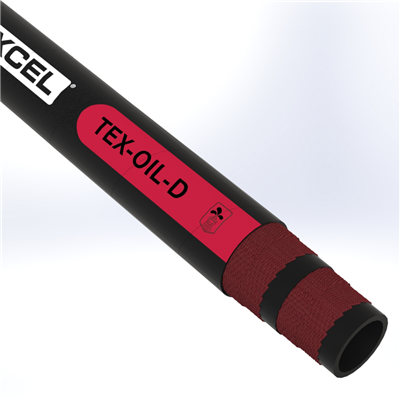

OIL-D-6.0-100N by Texcel | TEX-OIL-D Series | Oil Discharge Hose | 6" Hose ID | 200 PSI | Black

$7,342.84

Factory Order - Lead Time Applies

Hose Length: 100' Length

100' Length Exact Length (FT)

Buy more, save moreDiscounts applied in cart/checkout.

Quantity:

Petroleum Hose

TEX-OIL-D Oil Discharge Hose

Soft-wall petroleum oil transfer and discharge hose designed for use on trucks, docks and barges.

⚠ CAUTION: Not recommended for use on reels.

Tube

Black, nitrile, 55% aromatics (ORS)

Cover

Black, neoprene

Reinforcement

4 high tensile tire cord plies

Temperature Range

-40°F to +200°F

Safety Factor

4:1

Static Grounding

Braided copper wire runs length of hose

Working Pressure

200 psi

Branding

TEXCEL® TEX-OIL-D - PETROLEUM OIL TRANSFER / DISCHARGE HOSE 200 PSI W.P.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Weight (lbs/ft)
OIL-D-1.5-100	1-1/2"	2"	200	0.96
OIL-D-2.0-100N	2"	2-32/64"	200	1.12
OIL-D-3.0-100	3"	3-32/64"	200	1.89
OIL-D-4.0-100	4"	4-34/64"	200	2.68
OIL-D-6.0-100N	6"	6-54/64"	200	5.89
OIL-D-8.0-100	8"	9-8/64"	200	7.86

Series:

Color(s):

Internal Diameter:
