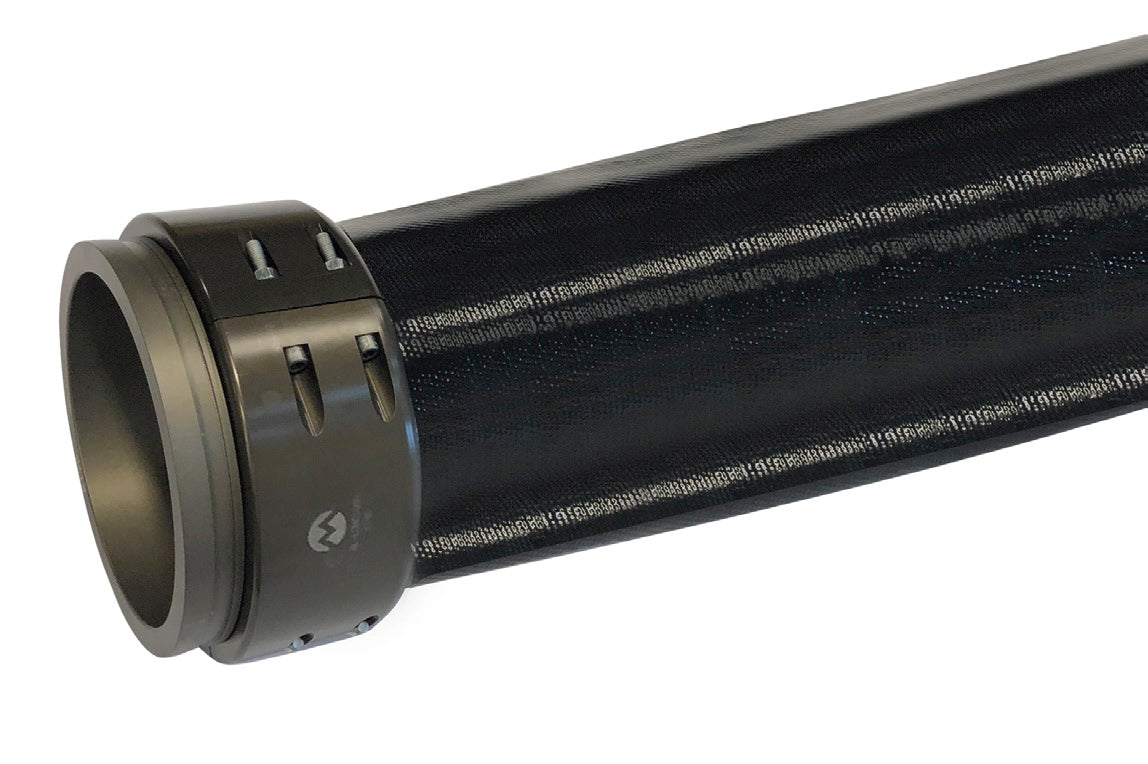

OFTRCH-1200X660 OROFLEX® TERRAIN™ by Kuriyama | OFTRC Series | Heavy Duty Discharge Layflat Hose Assembly | Polyurethane | with Oilfield Hose Couplings | 12" Size | Black | 660ft Length

OFTRCH-1200X660 OROFLEX® TERRAIN™ by Kuriyama | OFTRC Series | Heavy Duty Discharge Layflat Hose Assembly | Polyurethane | with Oilfield Hose Couplings | 12" Size | Black | 660ft Length

Minimum Order Quantity: 5 Units

Sale price$734.56

Kuriyama
OROFLEX® TERRAIN™ | OFTRC Series | Discharge Layflat Hose Assembly with Oilfield Hose Couplings

Built for high-volume fluid handling.

Ideal for the transfer of freshwater or frackwater.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.
Buy More, Save More!
Quantity Price Each
5–14 $690.49
15–29 $624.38
30+ $550.92
Discounts applied in cart/checkout.

Product Data:

Brand:
  • OROFLEX TERRAIN
Series:
  • OFTRC Series
Color(s):
  • Black

SPECIFICATIONS

Applications: Transfer of freshwater or frackwater.
Construction: Black polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +150°F (+65°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • Couplings Included - Durable and lightweight oilfield hose couplings (AL-LDHC Series) on hose ends.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to kinking, stretching and twisting. Superior snaking resistance!
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Factory Tested - 100% Hydraulic tested with factory certificate.
  • Supreme UV and Ozone Resistance - For extreme UV and ozone conditions.
  • Cost Efficient - Savings for 16" versus using 2 x 12" lines.
  • Made in Europe.
Part Number
660ft		 Size Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) at 68°F at 68°F (lbs)
OFTRC-1000X660 10" 254.0mm 0.169" 200 PSI 500 PSI 100,310 lbs
OFTRC-1200X660 12" 304.8mm 0.185" 175 PSI 435 PSI 121,254 lbs
OFTRCH-1200X660 12" 304.8mm 0.185" 200 PSI 500 PSI 154,300 lbs
