OF20Y-300X200 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 3" Size | 3.031" Hose ID | Yellow | 200ft Length
OF20Y-300X200 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 3" Size | 3.031" Hose ID | Yellow | 200ft Length

OF20Y-300X200 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 3" Size | 3.031" Hose ID | Yellow | 200ft Length

Sale price$1,637.03

Package Quantity: 200 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Agriculture
Air compressors
Bulk powder discharge (excluding cement)
Cable covering
Dewatering
Drainage
Flotation booms
High pressure liquid pumping
Industrial washdown
Irrigation
Limited oil and chemical applications
Watering

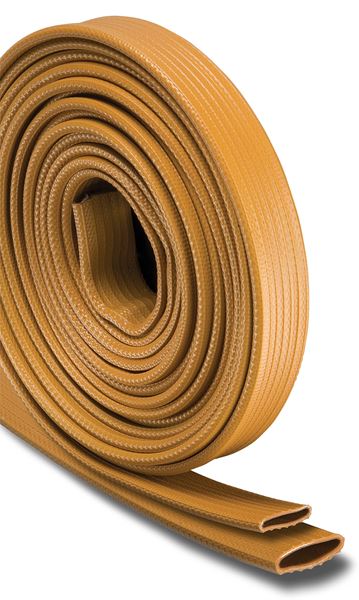

Construction: Yellow PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C)
Other Features:
  • Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
50ft		 Part Number
100ft		 Part Number
200ft		 Size Hose ID Wall
Thickness		 Working
Pressure

(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) Liquid Air PSI (lbs)
OF20Y-075X050 - OF20Y-075X200 3/4" 19.1mm 0.866" 22.0mm 0.080" 480 PSI 360 PSI 1450 lbs 3,300 lbs
OF20Y-100X050 - OF20Y-100X200 1" 25.4mm 1.075" 27.3mm 0.080" 550 PSI 415 PSI 1660 lbs 4,150 lbs
- - OF20Y-150X200 1-1/2" 38.1mm 1.555" 39.5mm 0.110" 305 PSI 225 PSI 910 lbs 6,600 lbs
- - OF20Y-200X200 2" 50.8mm 2.106" 53.5mm 0.120" 305 PSI 225 PSI 910 lbs 8,250 lbs
- - OF20Y-250X200 2-1/2" 63.5mm 2.590" 65.8mm 0.120" 300 PSI 185 PSI 750 lbs 13,200 lbs
- OF20Y-300X100 OF20Y-300X200 3" 76.2mm 3.031" 77.0mm 0.120" 260 PSI 160 PSI 650 lbs 18,750 lbs
- - OF20Y-400X200 4" 101.6mm 4.035" 102.5mm 0.120" 300 PSI - 750 lbs 28,650 lbs

Additional Product Data:

Brand:
  • OROFLEX 20
Series:
  • OF20Y Series
Color(s):
  • Yellow

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Explore Kuriyama
