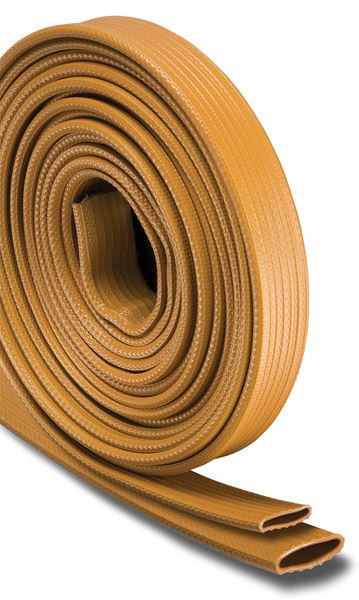

OF20Y-100X050 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 1" Size | 1.075" Hose ID | Yellow | 50ft Length
OF20Y-100X050 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 1" Size | 1.075" Hose ID | Yellow | 50ft Length

OF20Y-100X050 OROFLEX® 20 by Kuriyama | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose | PVC/Nitrile | 1" Size | 1.075" Hose ID | Yellow | 50ft Length

Sale price$151.40

Kuriyama
OROFLEX® 20 | OF20Y Series | Heavy Duty Air & Discharge Layflat Hose

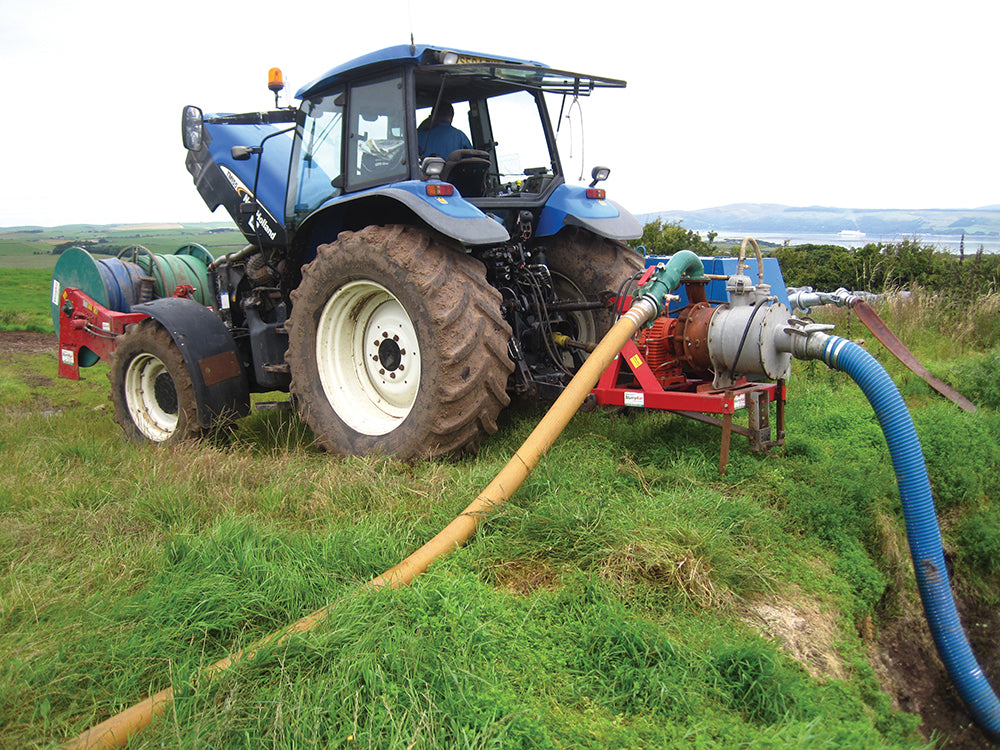

For agriculture, irrigation, dewatering, and industrial washdown, as well as air compressors, bulk powder discharge, and limited oil or chemical applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 50 Foot

Buy More, Save More!
Quantity Price Each
5–19 $142.32
20–59 $128.69
60+ $113.55
Discounts applied in cart/checkout.

Product Data:

Brand:
  • OROFLEX 20
Series:
  • OF20Y Series
Color(s):
  • Yellow

SPECIFICATIONS

Applications: Agriculture
Air compressors
Bulk powder discharge (excluding cement)
Cable covering
Dewatering
Drainage
Flotation booms
High pressure liquid pumping
Industrial washdown
Irrigation
Limited oil and chemical applications
Watering
Construction: Yellow PVC/Nitrile hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C)
Other Features:
  • Proprietary PVC/Nitrile Material - Specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
50ft		 Part Number
100ft		 Part Number
200ft		 Size Hose ID Wall
Thickness		 Working
Pressure

(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) Liquid Air PSI (lbs)
OF20Y-075X050 - OF20Y-075X200 3/4" 19.1mm 0.866" 22.0mm 0.080" 480 PSI 360 PSI 1450 lbs 3,300 lbs
OF20Y-100X050 - OF20Y-100X200 1" 25.4mm 1.075" 27.3mm 0.080" 550 PSI 415 PSI 1660 lbs 4,150 lbs
- - OF20Y-150X200 1-1/2" 38.1mm 1.555" 39.5mm 0.110" 305 PSI 225 PSI 910 lbs 6,600 lbs
- - OF20Y-200X200 2" 50.8mm 2.106" 53.5mm 0.120" 305 PSI 225 PSI 910 lbs 8,250 lbs
- - OF20Y-250X200 2-1/2" 63.5mm 2.590" 65.8mm 0.120" 300 PSI 185 PSI 750 lbs 13,200 lbs
- OF20Y-300X100 OF20Y-300X200 3" 76.2mm 3.031" 77.0mm 0.120" 260 PSI 160 PSI 650 lbs 18,750 lbs
- - OF20Y-400X200 4" 101.6mm 4.035" 102.5mm 0.120" 300 PSI - 750 lbs 28,650 lbs
