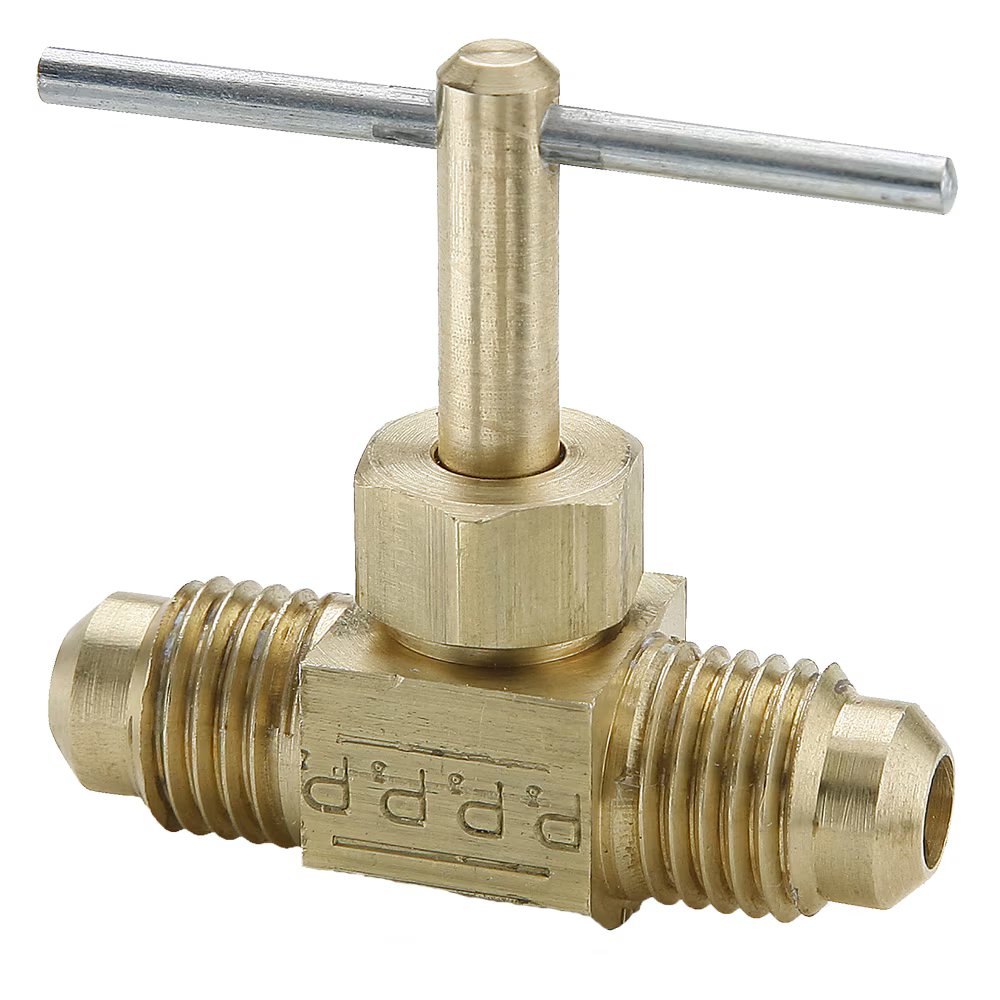

NV102F-4 by Parker | Needle Valve | 1/4" Flare x 1/4" Flare | 1.50" Length | Straight | Brass | Pack of 10

NV102F-4 by Parker | Needle Valve | 1/4" Flare x 1/4" Flare | 1.50" Length | Straight | Brass | Pack of 10

Sale price$162.81

by Parker Hannifin
Needle Valves:Needle Valve NV102F Flare to Flare

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $153.04
30–59 $138.39
60+ $122.11
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in SAE 45 Flare
  • 1/4in SAE 45 Flare
  • Some Ends Match
Material(s):
  • Brass
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:
  • Extruded Brass Body & Stem
  • Low Temperature Seal
  • Metal-to-Metal Seal
  • Pin Handle
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • -40° to +175° F (-40° to +79.4° C)
  • Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C)
  • NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size H L M
NV102F-4* 1/4" 1.50" 1.34" 1.50"

*Provided with Pin Handle

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
