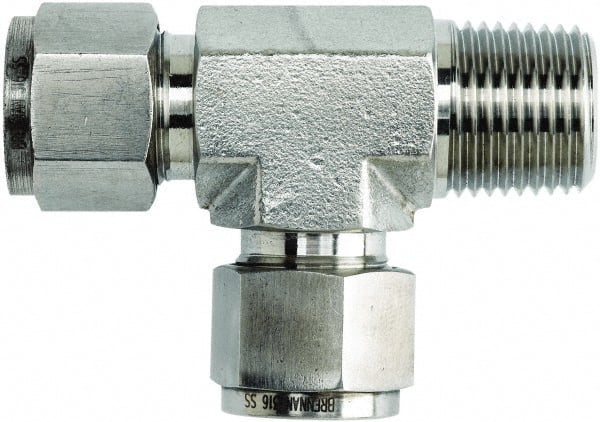

NS2605-06-04-06-SS by Brennan Inc. | -06 Single Ferrule Instrumentation Fitting x -04 Male Pipe Run x -06 Instrumentation Fitting | Tee | Stainless Steel

NS2605-06-04-06-SS by Brennan Inc. | -06 Single Ferrule Instrumentation Fitting x -04 Male Pipe Run x -06 Instrumentation Fitting | Tee | Stainless Steel

Sale price$80.31

Brennan Inc.
Single Ferrule Tube Fittings: NS2605 - Single Ferrule Instrumentation Fitting x Male Pipe Run x Instrumentation Fitting Tee
Buy More, Save More!
Quantity Price Each
5–19 $75.49
20–59 $68.26
60+ $60.23
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 3/8in Tube Compression
  • 1/4in Male NPT
  • 3/8in Tube Compression
  • Some Ends Match
Material(s):
  • Stainless Steel
Part Number Material T Tube OD P NPT Male A
mm		 AX
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F
mm		 G A/F
mm		 H A/F
mm		 HX
mm		 HY
mm
NS2605-04-04-04-SS Stainless Steel 1/4" 1/4" 50.3mm 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 43mm 19.6mm 23.4mm
NS2603-06-04-06-SS Stainless Steel 3/8" 1/4" 55.9mm 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 48.5mm 23.1mm 25.4mm
/NS2605-06-06-06-SS Stainless Steel 3/8" 3/8" 57.4mm 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 50.1mm 23.9mm 26.2mm
NS2605-08-08-08-SS Stainless Steel 1/2" 1/2" 69.0mm 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 58.9mm 25.9mm 33.0mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
