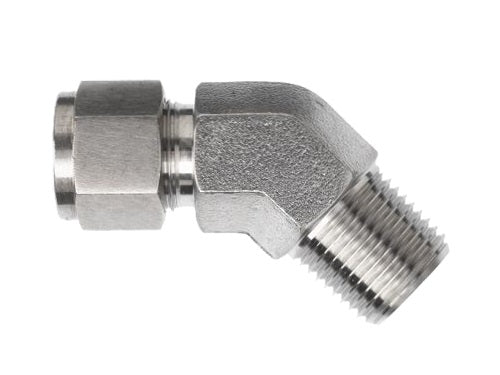

NS2503-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male NPT | 45° Elbow | Stainless Steel

NS2503-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male NPT | 45° Elbow | Stainless Steel

Sale price$83.10

Brennan Inc.
Single Ferrule Tube Fittings: NS2503 Instrumentation Fitting x Male NPT 45° Elbow
Buy More, Save More!
Quantity Price Each
5–19 $78.11
20–59 $70.64
60+ $62.33
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Male NPT
Material(s):
  • Stainless Steel
Part Number Material T Tube OD P NPT Female A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 HX
mm		 HY
mm
NS2503-04-04-SS Stainless Steel 1/4" 1/4" 24.6mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 17.30mm 21.0mm
NS2503-06-04-SS Stainless Steel 3/8" 1/4" 27.9mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 20.6mm 22.9mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
