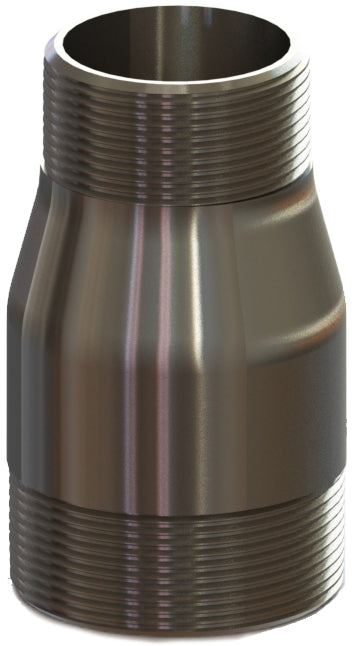

NS 3-2 by Campbell Fittings | Reducing Nipple | 3/4" Male NPT Thread x 1/2" Male NPT Thread | Carbon Steel

NS 3-2 by Campbell Fittings | Reducing Nipple | 3/4" Male NPT Thread x 1/2" Male NPT Thread | Carbon Steel

Sale price$15.22

by Campbell
Toe Nipples and Reducing Nipples:NS Reducing Nipple
Buy More, Save More!
Quantity Price Each
10–39 $14.31
40–79 $12.94
80+ $11.42
Discounts applied in cart/checkout.

Product Data:

Series:
  • NS Series
Shape:

Straight

Ends Configuration:
  • 3/4in Male NPT
  • 1/2in Male NPT
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number NPT x NPT Size
NS 3-2 3/4" x 1/2" 3/4" x 1/2"
NS 4-3 1" x 3/4" 1" x 3/4"
NS 5-4 1-1/4" x 1" 1-1/4" x 1"
NS 6-5 1-1/2" x 1-1/4" 1-1/2" x 1-1/4"
NS 8-6 2" x 1-1/2" 2" x 1-1/2"
NS 10-8 2-1/2" x 2" 2-1/2" x 2"
NS 12-8 3" x 2" 3" x 2"
NS 12-10 3" x 2-1/2" 3" x 2-1/2"
NS 16-12 4" x 3" 4" x 3"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
