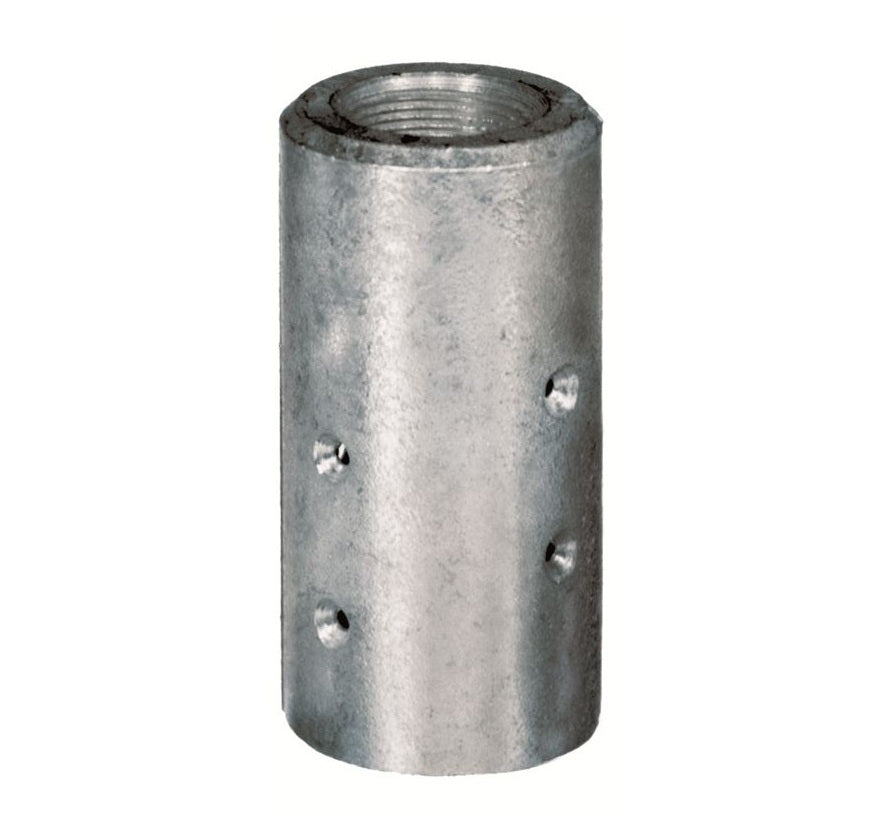

NH-AL4 by Kuriyama | NH-AL Series | Sandblast Coupling Nozzle Holder | 1-1/2" Hose ID | 2-3/8" Hose OD | Aluminum
Kuriyama of America Inc.
NH-AL Series | Sandblast Coupling Nozzle Holder | Aluminum
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.76 |
| 40–79 | $20.58 |
| 80+ | $18.16 |
Discounts applied in cart/checkout.
What are the Materials?
- Aluminum – ASTMB26, Grade 713.
| Part Number | Hose ID (in) |
Hose OD (in) |
PSI Rating at 70°F |
NPS Thread Size (in) |
Weight Each (lbs) |
|---|---|---|---|---|---|
| NH-AL050 | 1/2" | 1-1/16" | 150 PSI | 3/4" | 0.15 lbs |
| NH-AL1 | 3/4" | 1-1/2" | 150 PSI | 1-1/4" | 0.30 lbs |
| NH-AL2 | 1", 1-1/4" | 1-7/8" | 150 PSI | 1-1/4" | 0.36 lbs |
| NH-AL3 | 1-1/4" | 2-5/32" | 150 PSI | 1-1/4" | 0.52 lbs |
| NH-AL4 | 1-1/2" | 2-3/8" | 150 PSI | 1-1/4" | 0.98 lbs |
Product Data:
Series:
MAWP:
150
Shape:
Straight
Material(s):
Specifications and Approvals:
