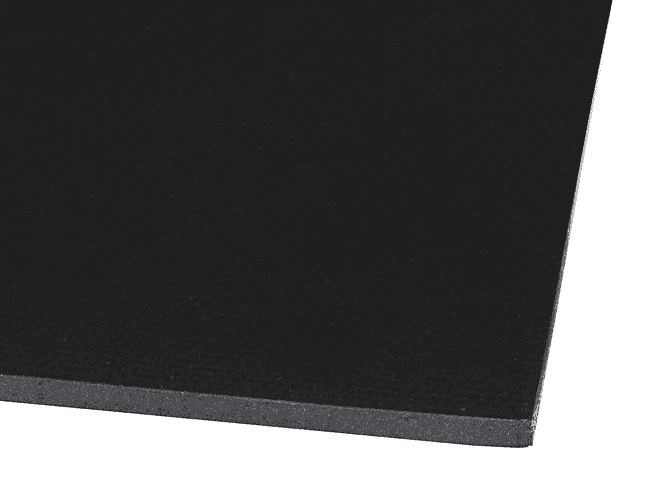

NDIA-1P02X48X50 by Kuriyama | Commercial Grade Neoprene Diaphragm Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/16" x 48" | 50ft Roll
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Styles: | 60 Duro hardness (Shore Durometer A) | Polymer: | Chloroprene reinforced with 14.5 oz./sq. yd.nylon fabric |
|---|---|---|---|
| Common Name: | Nylon-reinforced Neoprene Sheet | ISO/ASTM Designation: | CR |
| Features & Properties: | |||
|
|||
| Part Number | Gauge x Width in. | ASTM Specification(SI units) | Temp.Range | Durometer | Tensile Strength(PSI) | Fabric Plies | Finish | Avg. Length(Linear Ft. /Roll) | Weight(Lbs/Roll) |
|---|---|---|---|---|---|---|---|---|---|
| NDIA-1P02X48X50 | 1/16" x 48" | D2000 - M2BC607 | -20 deg. F to +180 deg. F | 55 - 65 | 1015 PSI | 1 Ply | Plate | 50ft | 66 lbs |
| NDIA-2P04X48X50 | 1/8" x 48" | D 2000 M2BC 607 | -20 deg. F to +180 deg. F | 55 - 65 | 1015 PSI | 2 Ply | Plate | 50ft | 167 lbs |
