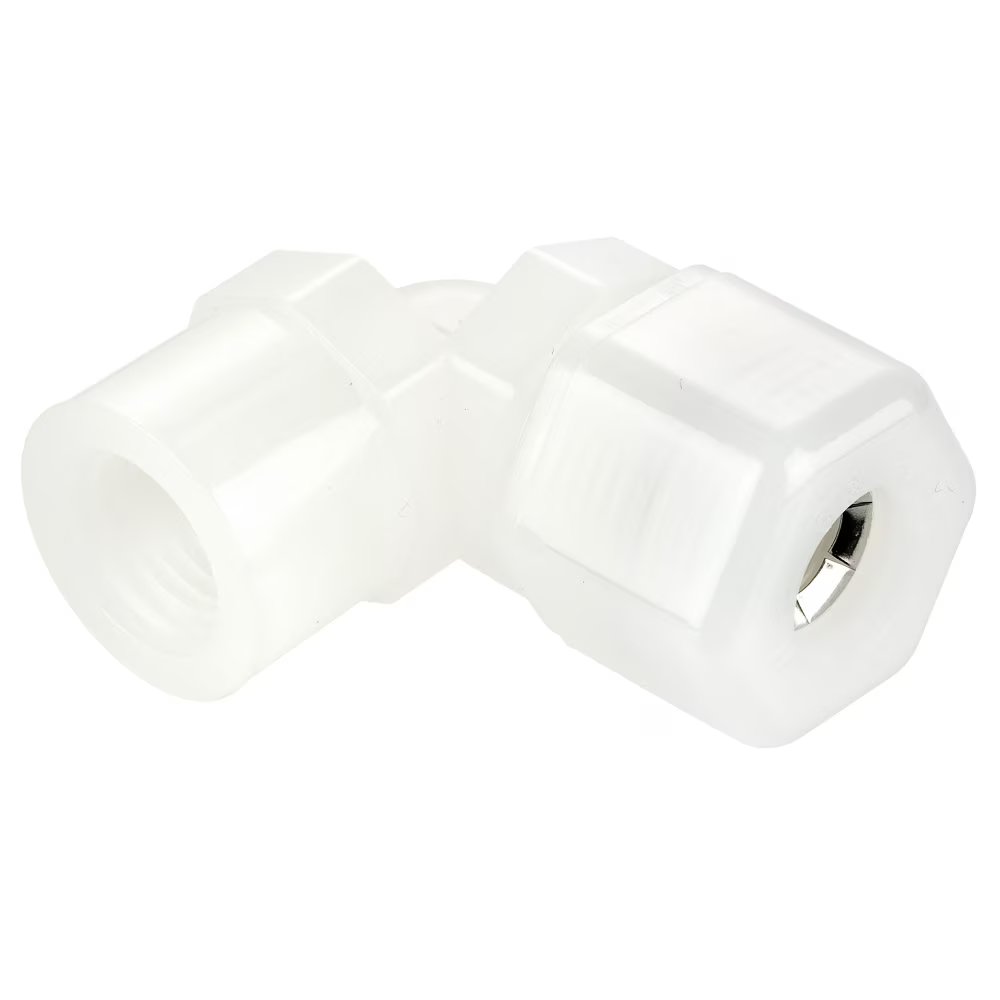

N6FE6 by Parker | Threaded Fitting | 3/8" Tube OD x 3/8" Female NPTF Thread | 13/16" Hex | 90° Elbow | Natural | Nylon
by Parker Hannifin
Fast & Tite® Fittings:FE - Female Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.20 |
| 40–79 | $2.89 |
| 80+ | $2.55 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
||||||
|---|---|---|---|---|---|---|---|
| Markets: |
|
||||||
| Applications: |
|
||||||
 |
|||||||
| Temperature Range: | 0° to +200° F (-17.8° to +93.3° C) | ||||||
| Compatible Tubing: |
|
||||||
 |
|||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Black Polypropylene Part Number | White Polypropylene Part Number | Natural Nylon Part Number | Nom. Tube O.D. | NPTF Thread Size | Hex (C) | M | N | Flow Diameter (D) |
| P4FE2 | - | N4FE2 | 1/4" | 1/8" | 11/16" | 1.10" | .84" | .170" |
| P4FE4 | W4FE4 | N4FE4 | 1/4" | 1/4" | 11/16" | 1.10" | .94" | .170" |
| - | - | N5FE2 | 5/16" | 1/8" | 11/16" | 1.10" | .84" | .193" |
| P6FE4 | W6FE4 | N6FE4 | 3/8" | 1/4" | 13/16" | 1.30" | 1.06" | .250" |
| P6FE6 | N6FE6 | 3/8" | 3/8" | 13/16" | 1.30" | 1.03" | .250" | |
| P8FE6 | - | N8FE6 | 1/2" | 3/8" | 1" | 1.50" | 1.16" | .375" |
| P8FE8 | W8FE8 | N8FE8 | 1/2" | 1/2" | 1" | 1.50" | 1.27" | .375" |
| P10FE8 | - | N10FE8 | 5/8" | 1/2" | 1-1/8" | 1.70" | 1.34" | .500" |
