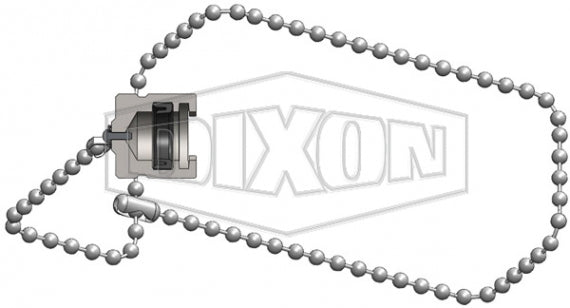

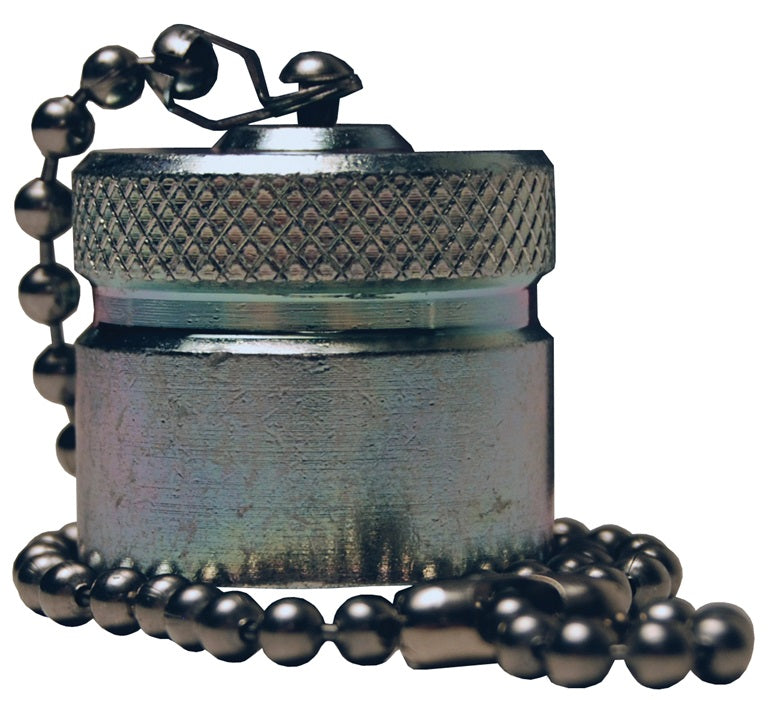

N4DC by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Bowes Interchange Plug Cap | 1/2" Body Size | Steel
N4DC by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Bowes Interchange Plug Cap | 1/2" Body Size | Steel

N4DC by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Bowes Interchange Plug Cap | 1/2" Body Size | Steel

Sale price$25.13

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Bowes Interchange Plug Cap


In stock
Buy More, Save More!
Quantity Price Each
10–39 $23.62
40–79 $21.36
80+ $20.10
Discounts applied in cart/checkout.
Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
  • Conforms to MIL-C-3486 and A-A-50431A standards.
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Dust cap with steel cable lanyard.
  • Temperature Range: -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dix-Lock N-Series | Bowes Interchange Plug Cap
Part Number Cap Lanyard Body Size Material Length Maximum OD
N4DC Steel Cable 1/2" Steel 1.50"
(38.1mm)		 1.33"
(33.8mm)
N4DC-B Steel Cable 1/2" Brass 1.50"
(38.1mm)		 1.33"
(33.8mm)

Product Data:

Brand:
  • Dix-Lock
Series:
  • N Series
Shape:

Straight

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
