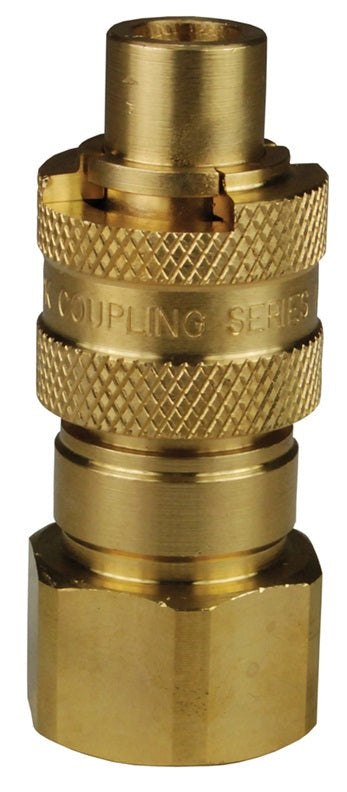

N4BF8-B Dixon Valve Brass N-Series Quick Disconnect 1/2" Bowes Interchange Pneumatic Nipple - 1"-11 Female BSPP
Dixon

N4BF8-B Dixon Valve Brass N-Series Quick Disconnect 1/2" Bowes Interchange Pneumatic Nipple - 1"-11 Female BSPP

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Specifications:
  • Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,200 PSI Burst
  • Temperature Range: -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C)
Construction:
  • Machined components are manufactured using solid bar stock.
  • Phosphor Bronze retaining ring and spring maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Compatibility & Interchange Data:
  • Bowes Interchange Bayonet Style
  • Bowes 51000-Series
  • National Series 'B'
  • Dixon Dixlock
  • MacDonald Quick-Action
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • WARNING: Brass products contain a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Female Thread Material Length Max. OD Hex Weight (Lbs.)
N4F3 1/2" 3/8"-18 NPTF steel 2.73" 1.40" 1-1/8" 0.4900
N4F3-B 1/2" 3/8"-18 NPTF brass 2.73" 1.40" 1-1/8" 0.5400
N4BF3 1/2" 3/8"-19 BSPP steel 2.73" 1.40" 1-1/8" 0.4900
N4F4 1/2" 1/2"-14 NPTF steel 2.73" 1.40" 1-1/8" 0.7500
N4F4-B 1/2" 1/2"-14 NPTF brass 2.73" 1.40" 1-1/8" 0.8300
N4BF4 1/2" 1/2"-14 BSPP steel 2.73" 1.40" 1-1/8" 0.7500
N4BF4-B 1/2" 1/2"-14 BSPP brass 2.73" 1.40" 1-1/8" 0.8300
N4F6 1/2" 3/4"-14 NPTF steel 3.34" 1.58" 1-3/8" 0.6600
N4F6-B 1/2" 3/4"-14 NPTF brass 3.34" 1.58" 1-3/8" 0.7400
N4F6-S 1/2" 3/4"-14 NPTF 303 stainless 3.34" 1.58" 1-3/8" 0.6900
N4BF6 1/2" 3/4"-14 BSPP steel 3.34" 1.58" 1-3/8" 0.7000
N4BF6-B 1/2" 3/4"-14 BSPP brass 3.34" 1.58" 1-3/8" 0.7400
N4F8 1/2" 1"-11-1/2 NPTF steel 3.37" 1.73" 1-1/2" 0.7200
N4F8-B 1/2" 1"-11-1/2 NPTF brass 3.37" 1.73" 1-1/2" 0.7700
N4BF8 1/2" 1"-11 BSPP steel 3.37" 1.73" 1-1/2" 0.7200
N4BF8-B 1/2" 1"-11 BSPP brass 3.37" 1.73" 1-1/2" 0.7700
