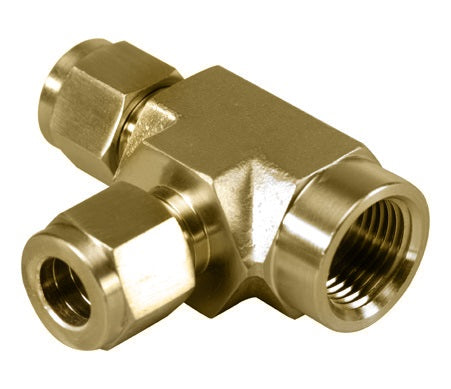

N2606-08-08-08-B by Brennan Inc. | -08 Instrumentation Fitting x -08 Female NPT Run x -08 Instrumentation Fitting | Tee | Brass

N2606-08-08-08-B by Brennan Inc. | -08 Instrumentation Fitting x -08 Female NPT Run x -08 Instrumentation Fitting | Tee | Brass

Sale price$80.27

Brennan Inc.
Double Ferrule Tube Fittings: N2606 - Instrumentation Fitting x Female NPT Run x Instrumentation Fitting Tee
Buy More, Save More!
Quantity Price Each
5–19 $75.45
20–59 $68.23
60+ $60.20
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/2in Tube Compression
  • 1/2in Female NPT
  • 1/2in Tube Compression
  • Some Ends Match
Material(s):
  • Brass
Part Number Material T Tube OD P NPT Male A AX B C D E Min. F A/F G A/F H HX HY
N2606-06-04-06-B Brass 3/8" 1/4" 53.6mm 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 46.3mm 23.9mm 22.4mm
N2606-08-08-08-B Brass 1/2" 1/2" 67.4mm 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 57.2mm 28.7mm 28.5mm
N2606-02-02-02-SS Stainless Steel 1/8" 1/8" 43.6mm 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 37.0mm 18.0mm 19.0mm
N2606-04-02-04-SS Stainless Steel 1/4" 1/8" 45.9mm 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 38.6mm 19.6mm 19.0mm
N2606-04-04-04-SS Stainless Steel 1/4" 1/4" 52.1mm 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 44.8mm 22.4mm 22.4mm
N2606-06-04-06-SS Stainless Steel 3/8" 1/4" 53.6mm 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 46.3mm 23.9mm 22.4mm
N2606-06-06-06-SS Stainless Steel 3/8" 3/8" 55.7mm 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 48.3mm 25.9mm 22.4mm
N2606-08-06-08-SS Stainless Steel 1/2" 3/8" 58.4mm 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 48.3mm 25.9mm 22.4mm
N2606-08-08-08-SS Stainless Steel 1/2" 1/2" 67.4mm 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 57.2mm 28.7mm 28.5mm
N2606-12-12-12-SS Stainless Steel 3/4" 3/4" 76.5mm 44.7mm 20.6mm 21.8mm 24.4mm 15.8mm 35.0mm 29.0mm 66.4mm 34.6mm 31.8mm
N2606-16-12-16-SS Stainless Steel 1" 3/4" 80.8mm 49.0mm 20.6mm 26.4mm 31.0mm 22.3mm 35.0mm 38.0mm 68.6mm 36.8mm 31.8mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
