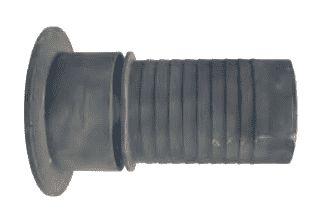

N250NO Dixon Valve Carbon Steel Notched Turned Back Nipple - 2-1/2" Stem
Dixon

N250NO Dixon Valve Carbon Steel Notched Turned Back Nipple - 2-1/2" Stem

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • When used with an appropriate notched ferrule, these fittings can be swaged or crimped onto hose, thereby providing improved shank retention.
  • When used with double bolt or band clamps, notched turned back nipples will provide shank retention similar to that of the King turned back nipples.
  • Notched turned back nipples let you use the same ferrules used with the notched (NO) cam and groove. This lets you maximize your inventory usage and reduce costs. You must purchase a fitting and the matching ferrule to create an assembly.
  • Stems are for use with lap joint flanges.
Part Number Size Material Weight (Lbs.)
N150NO 1-1/2" Carbon Steel 0.9800
N200NO 2" Carbon Steel 1.5650
N250NO 2-1/2" Carbon Steel -
N300NO 3" Carbon Steel 3.8800
N400NO 4" Carbon Steel 5.2300

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
