MW-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Tube Stem | Carbon Steel

MW-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Tube Stem | Carbon Steel

Sale price$36.32

Kurt Hydraulics
MW - Stand Tube Rigid
Buy More, Save More!
Quantity Price Each
10–39 $34.14
40–79 $30.87
80+ $27.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 5/8in Tube Stem

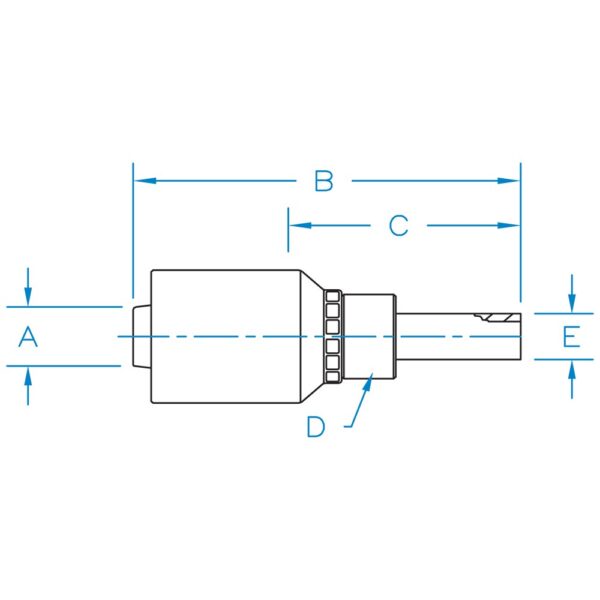

Part Number Hose I.D. (in.) B C D E Thread
MW-04-04-K2 1/4" 2.47" 1.41" 5/8" 1/4" N/A
MW-04-05-K2 1/4" 2.58" 1.52" 5/8" 5/16" N/A
MW-04-06-K2 1/4" 2.66" 1.60" 5/8" 3/8" N/A
MW-06-06-K2 3/8" 2.99" 1.62" 3/4" 3/8" N/A
MW-06-08-K2 3/8" 3.26" 1.89" 3/4" 1/2" N/A
MW-08-08-K2 1/2" 3.28" 1.94" 7/8" 1/2" N/A
MW-08-10-K2 1/2" 3.49" 2.15" 7/8" 5/8" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
