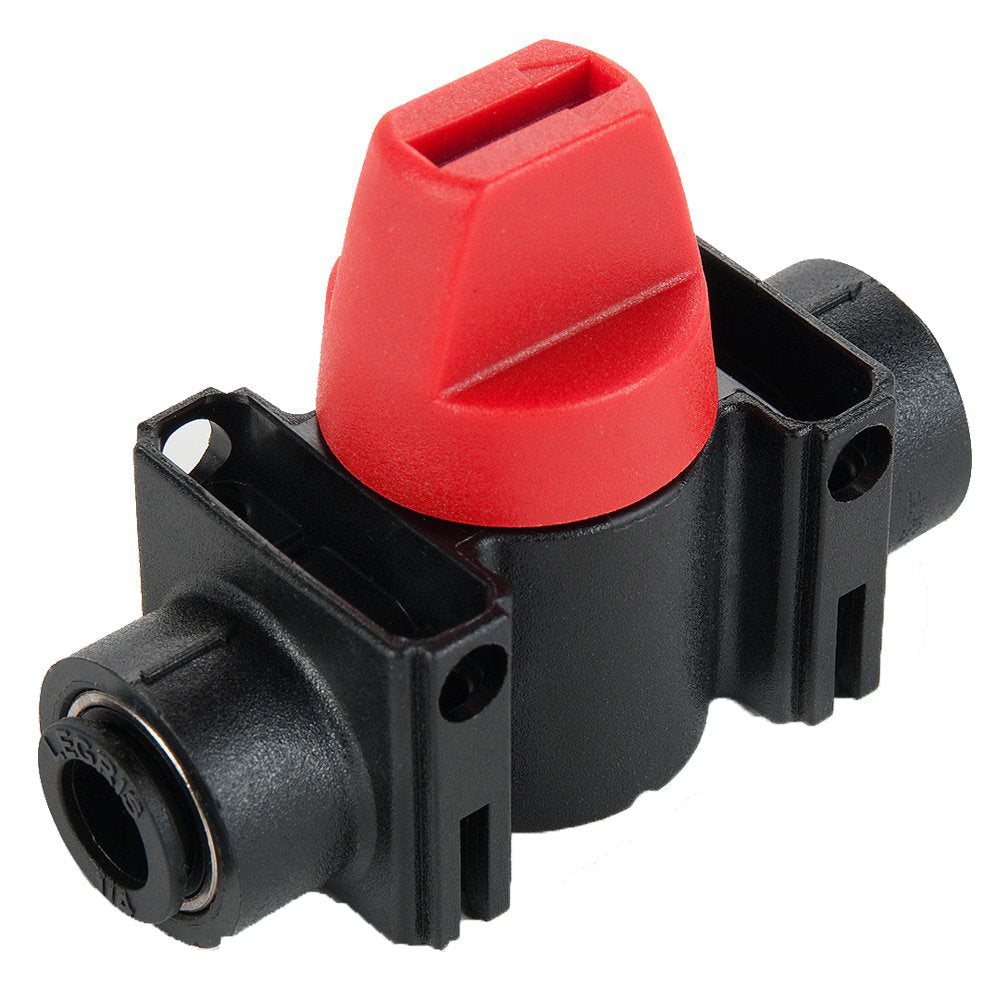

MVV308-6M-2G by Parker | Mini Ball Valve Vented | 6 mm Push-to-Connect x G1/8" Male BSPP Thread | 62 mm Length | 37 mm Width | 22 mm Height | Straight | Nylon | Pack of 10
by Parker Hannifin
Mini Ball Valves:MVV308 Mini Ball Valve Vented SPP to Push-To-Connect Port
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $487.84 |
| 15–29 | $441.13 |
| 30+ | $389.24 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | 145 PSI (9.9 bar) |
| Temperature Range: | -4° to 175° F (-20° to +79.4° C) |
| Vacuum Capability: | 28” Hg |
| Compatible Tubing: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP | F | H | J | K | L | L1 | N |
| MVV308-6M-2G | 6 mm | G1/8" | 13 mm | 37 mm | 14.0 | 22 mm | 62 mm | 37 mm | 16.20 mm |
| MVV308-8M-4G | 8 mm | G1/4" | 16 mm | 37 mm | 17.5 | 22 mm | 61 mm | 35 mm | 16.20 mm |
| MVV308-10M-6G | 10 mm | G3/8" | 20 mm | 43 mm | 22.0 | 30 mm | 74 mm | 41 mm | 22.00 mm |
