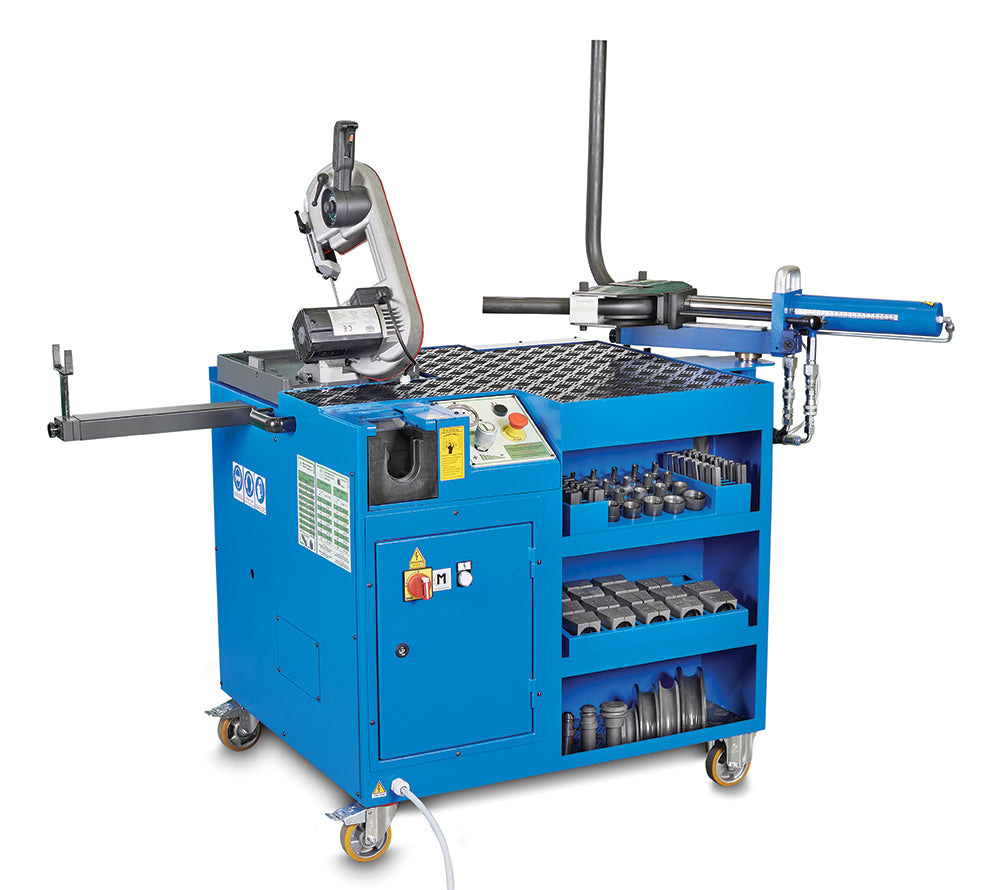

MULTICEN-JR-230/1 KuriCrimp™ by Kuriyama | Multifunctional / Tube Processing Multicenter | For: Bending, 37° Flaring, Deburring, Preassembly & Cutting of Rigid Hydraulic Tubes

MULTICEN-JR-230/1 KuriCrimp™ by Kuriyama | Multifunctional / Tube Processing Multicenter | For: Bending, 37° Flaring, Deburring, Preassembly & Cutting of Rigid Hydraulic Tubes

Sale price$28,976.92

Kuriyama of America Inc.
KuriCrimp™ | Multifunctional / Tube Processing Center for Rigid Hydraulic Tubes

A well rounded unit, that includes the features: bending, 24° ring pre-assembly, 37° flaring and deburring, with the additional ability to perform tube cutting.

Also includes a small air compressor for cleaning shavings out of the inside of tubes.
Buy More, Save More!
Quantity Price Each
3–5 $27,238.30
6+ $26,079.23
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • MULTICEN-JR Series
Tube Materials:
  • Stainless (AISI 316 TI) or Carbon (ST37.4) Steel.
Cutting:
  • Maximum Diameter (in): 3.9"
Bending:
  • Tube Diameter Range (in): 1/4 - 1-1/2
  • Tube Max. Width (in): 0.15
  • Max Bending Angle: 170°
24° Preassembly:
  • Tube Diameter Range (in): 0.236 - 1.654
  • Tube Max. Width (in): 0.15
37° Flaring:
  • Tube Diameter Range (in): 1/4 - 1-1/2
  • Tube Max. Width (in): 0.15
Deburring:
  • Tube Max. Size (in): 1/4 - 1-1/2
Multicenter Size:
  • L x W x H (in): 59.7 x 39.4 x 47.6
  • Weight (lbs): 670
  Part Number Description
MULTICEN-JR-230/1 6.3 HP (230 V) 1 PH Motor
Includes: Handheld Electronic Control, Tool Holder, Tube Cleaning Air Compressor
Included Accessories
Handheld Electronic Control Tool Holder Tube Cleaning Air Compressor
Bending Tools For MULTICEN-MIN and MULTICEN-JR Multicenters
Part Number Diameter Tubing OD (in) Min. Bend Radius (in) Max. Bend Angle (°) A (mm) B (mm)
BENDTOOL-JR-6 6mm 6.0" 15.0" 170° 60mm 70mm
BENDTOOL-JR-8 8mm 8.0" 16.5" 170° 60mm 70mm
BENDTOOL-JR-10 10mm 10.0" 27.5" 170° 70mm 115mm
BENDTOOL-JR-12 12mm 12.0" 32.5" 170° 80mm 120mm
BENDTOOL-JR-14 14mm 14.0" 46.0" 170° 110mm 180mm
BENDTOOL-JR-15 15mm 15.0" 46.0" 170° 110mm 180mm
BENDTOOL-JR-16 16mm 16.0" 48.0" 170° 110mm 180mm
BENDTOOL-JR-18 18mm 18.0" 48.0" 170° 110mm 190mm
BENDTOOL-JR-20 20mm 20.0" 66.0" 170° 140mm 230mm
BENDTOOL-JR-22 22mm 22.0" 66.0" 160° 140mm 240mm
BENDTOOL-JR-25 25mm 25.0" 81.5" 160° 170mm 270mm
BENDTOOL-JR-28 28mm 28.0" 81.0" 160° 180mm 300mm
BENDTOOL-JR-30 30mm 30.0" 98.5" 150° 220mm 300mm
BENDTOOL-JR-32 32mm 32.0" 101.0" 150° 220mm 300mm
BENDTOOL-JR-35 35mm 35.0" 125.5" 120° 250mm 440mm
BENDTOOL-JR-38 38mm 38.0" 116.0" 120° 250mm 440mm
BENDTOOL-JR-42 42mm 42.0" 126.0" 120° 250mm 440mm
Part Number Description Tubing OD (in) Min. Bend Radius (in) Max. Bend Angle (°) A (mm) B (mm)
BENDTOOL-JR-1-4 1/4" 1/4" 0.65" 170° 2.36mm 2.76mm
BENDTOOL-JR-3-8 3/8" 3/8" 1.08" 170° 2.76mm 4.53mm
BENDTOOL-JR-1-2 1/2" 1/2" 1.28" 170° 3.15mm 4.72mm
BENDTOOL-JR-5-8 5/8" 5/8" 1.88" 170° 4.33mm 7.09mm
BENDTOOL-JR-3-4 3/4" 3/4" 1.88" 170° 4.33mm 7.09mm
BENDTOOL-JR-1 1" 1" 3.20" 160° 6.69mm 10.63mm
BENDTOOL-JR-1 1/4 1-1/4" 1-1/4" 3.97" 150° 8.66mm 11.81mm
BENDTOOL-JR-1 1/2 1-1/2" 1-1/2" 4.56" 120° 9.84mm 17.32mm
Flaring Tools For MULTICEN-MIN and MULTICEN-JR Multicenters
Part Number Description Tubing OD (mm)
FLAIRBLOCK-JR Flaring Block 6mm - 42mm

Part Number Diameter Tubing OD (mm)
FLAIRTOOL-JR-6 6mm 6.0mm
FLAIRTOOL-JR-8 8mm 8.0mm
FLAIRTOOL-JR-10 10mm 10.0mm
FLAIRTOOL-JR-12 12mm 12.0mm
FLAIRTOOL-JR-14 14mm 14.0mm
FLAIRTOOL-JR-15 15mm 15.0mm
FLAIRTOOL-JR-16 16mm 16.0mm
FLAIRTOOL-JR-18 18mm 18.0mm
FLAIRTOOL-JR-20 20mm 20.0mm
FLAIRTOOL-JR-22 22mm 22.0mm
FLAIRTOOL-JR-25 25mm 25.0mm
FLAIRTOOL-JR-28 28mm 28.0mm
FLAIRTOOL-JR-30 30mm 30.0mm
FLAIRTOOL-JR-32 32mm 32.0mm
FLAIRTOOL-JR-35 35mm 35.0mm
FLAIRTOOL-JR-38 38mm 38.0mm
FLAIRTOOL-JR-42 42mm 42.0mm
