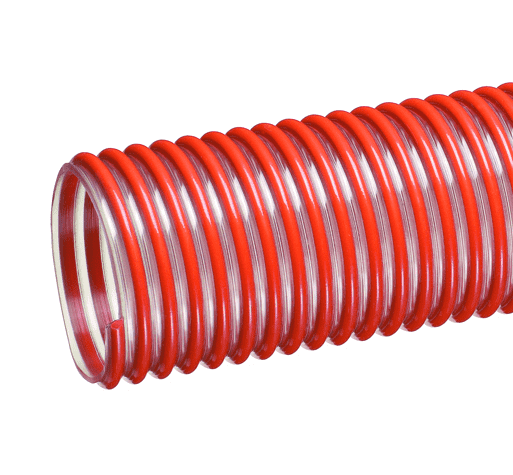

MULCH600X100 Tigerflex by Kuriyama | MULCH Series | Heavy Duty Material Handling Hose | 6" ID | PVC | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Material handling - standard duty, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| MULCH400X100 | 4" | 101.6mm | 4.57" | 116.0mm | 35 PSI | 15 PSI | Full | 28 in. Hg | 8" | 100ft | 1.35 lbs |
| MULCH500X100 | 5" | 127.0mm | 5.61" | 142.6mm | 30 PSI | 12 PSI | 24 in. Hg | 22 in. Hg | 14" | 100ft | 1.75 lbs |
| MULCH600X100 | 6" | 153.4mm | 6.79" | 172.4mm | 25 PSI | 10 PSI | 24 in. Hg | 22 in. Hg | 16" | 100ft | 2.42 lbs |
