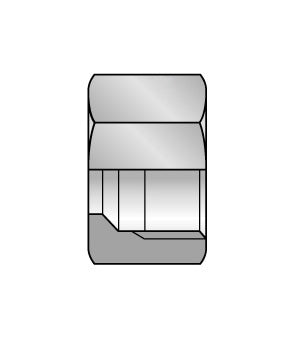

MTN-16H24X1.5 Alfagomma by Kuriyama | MTN Series | Two-Piece Hydraulic Hose Fitting | Nut for DIN 24° Tube Connection | DIN 24° Heavy | 16mm OD | M24X1.5 | Steel
Minimum Order Quantity: 5 Units
Kuriyama of America Inc.
Alfagomma | MTN Series | Two-Piece Hydraulic Hose Fitting | Nut for DIN 24° Tube Connection | DIN 24° Heavy
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.26 |
| 40–79 | $4.76 |
| 80+ | $4.20 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Material(s):
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
OD | C | F | H | Weight | |||||
| (mm) | (mm) | (mm) | (mm) | lbs/each | ||||||
| MTN-6H14X1.5 | 6mm | M14X1.5 | 17mm | 16.5mm | 0.04 lbs | |||||
| MTN-8H16X1.5 | 8mm | M16X1.5 | 19mm | 16.5mm | 0.04 lbs | |||||
| MTN-10H18X1.5 | 10mm | M18X1.5 | 22mm | 17.5mm | 0.07 lbs | |||||
| MTN-12H20X1.5 | 12mm | M20X1.5 | 24mm | 17.5mm | 0.08 lbs | |||||
| MTN-14H22X1.5 | 14mm | M22X1.5 | 27mm | 20.5mm | 0.11 lbs | |||||
| MTN-16H24X1.5 | 16mm | M24X1.5 | 30mm | 20.5mm | 0.14 lbs | |||||
| MTN-20H30X2 | 20mm | M30X2 | 36mm | 24.0mm | 0.22 lbs | |||||
| MTN-25H36X2 | 25mm | M36X2 | 46mm | 27.0mm | 0.44 lbs | |||||
| MTN-30H42X2 | 30mm | M42X2 | 50mm | 29.0mm | 0.49 lbs | |||||
| MTN-38H52X2 | 38mm | M52X2 | 60mm | 32.5mm | 0.68 lbs | |||||
