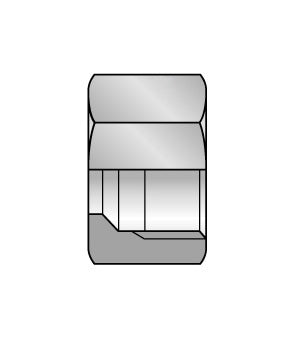

MTN-12L18X1.5 Alfagomma by Kuriyama | MTN Series | Two-Piece Hydraulic Hose Fitting | Nut for DIN 24° Tube Connection | DIN 24° Light | 12mm OD | M18X1.5 | Steel
Minimum Order Quantity: 10 Units
Kuriyama of America Inc.
Alfagomma | MTN Series | Two-Piece Hydraulic Hose Fitting | Nut for DIN 24° Tube Connection | DIN 24° Light
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.85 |
| 40–79 | $1.67 |
| 80+ | $1.48 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Material(s):
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
OD | C | F | H | Weight | |||||
| (mm) | (mm) | (mm) | (mm) | lbs/each | ||||||
| MTN-6L12X1.5 | 6mm | M12X1.5 | 14mm | 14.5mm | 0.02 lbs | |||||
| MTN-8L14X1.5 | 8mm | M14X1.5 | 17mm | 14.5mm | 0.03 lbs | |||||
| MTN-10L16X1.5 | 10mm | M16X1.5 | 19mm | 15.5mm | 0.04 lbs | |||||
| MTN-12L18X1.5 | 12mm | M18X1.5 | 22mm | 15.5mm | 0.05 lbs | |||||
| MTN-15L22X1.5 | 15mm | M22X1.5 | 27mm | 17.0mm | 0.09 lbs | |||||
| MTN-18L26X1.5 | 18mm | M26X1.5 | 32mm | 18.0mm | 0.13 lbs | |||||
| MTN-22L30X2 | 22mm | M30X2 | 36mm | 20.0mm | 0.17 lbs | |||||
| MTN-28L36X2 | 28mm | M36X2 | 41mm | 21.0mm | 0.20 lbs | |||||
| MTN-35L45X2 | 35mm | M45X2 | 50mm | 24.0mm | 0.30 lbs | |||||
| MTN-42L52X2 | 42mm | M52X2 | 60mm | 24.0mm | 0.48 lbs | |||||
