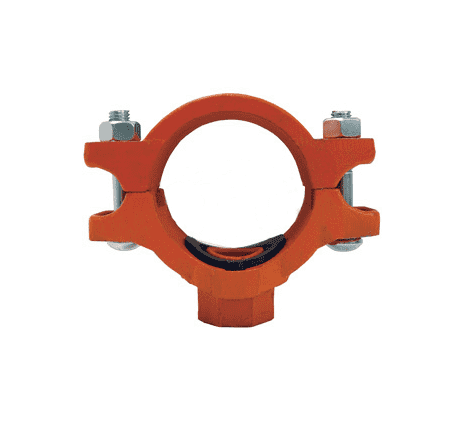

MT4020 Dixon Valve Ductile Iron Mechanical Tee - Series T - 4" Nominal Size - 2" Branch Size
Dixon

MT4020 Dixon Valve Ductile Iron Mechanical Tee - Series T - 4" Nominal Size - 2" Branch Size

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Applications:
  • Provides a fast easy way to install a threaded connection along a length of pipe. After drilling or cutting a hole in the pipe at the location of the branch connection, simply attach the clamps around the pipe for a leak-free threaded outlet connection.
Features:
  • Ductile iron body with rust inhibiting paint.
  • Underwriters Listed and Factory Mutual approved.
  • maximum working pressure: 300 PSI at 70 deg. F.
  • Comparable to:
    • Victaulic's #920
    • Grinnell's #7045
  • For replacement gaskets, nuts, and bolts see: Pipe and Welding Accessories
Dimensions:
Part Number Nominal Size Branch Size Hole Saw Diameter Maximum End Load (Lbs.) Coupling Dimensions Bolts Weight (Lbs.)
A B C D E Qty Size Length
MT2010 2" 1" 1-1/2" 1-5/8" 5-1/16" 1-1/2" 2-3/4" 2-5/8" 1-7/8" 2 3/8" 2" 2.4000
MT20125 2" 1-1/4" 1-3/4" 1-7/8" 5-1/16" 1-1/2" 2-15/16" 2-3/4" 1-7/8" 2 3/8" 2" 2.4000
MT20150 2" 1-1/2" 1-3/4" 1-7/8" 5-1/16" 1-1/2" 2-15/16" 2-3/4" 1-7/8" 2 3/8" 2" 2.4000
MT25010 2-1/2" 1" 1-1/2" 1-5/8" 5-5/32" 1-11/16" 3" 2-31/32" 2" 2 1/2" 2-5/8" 2.4500
MT250125 2-1/2" 1-1/4" 2" 2-1/8" 5-13/16" 1-11/16" 3-11/32" 3" 2" 2 1/2" 2-5/8" 3.6500
MT3010 3" 1" 1-1/2" 1-5/8" 6-11/32" 2-1/8" 3-3/32" 3-1/16" 2" 2 1/2" 2-3/4" 3.6500
MT30150 3" 1-1/2" 2" 2-1/8" 6-11/32" 2-1/8" 3-3/4" 3-3/8" 2" 2" 1/2 2-3/4" 4.2000
MT4010 4" 1" 1-1/2" 1-5/8" 7-5/16" 2-9/16" 3-3/32" 3-1/2" 2" 2 1/2" 2-3/4" 4.1500
MT40125 4" 1-1/4" 2" 2-1/8" 7-5/16" 2-9/16" 3-3/4" 3-7/8" 2" 2 1/2" 2-3/4" 4.9550
MT40150 4" 1-1/2" 2" 2-1/8" 7-5/16" 2-9/16" 3-3/4" 3-7/8" 2" 2 1/2" 2-3/4" 4.9000
MT4020 4" 2" 2-1/2" 2-5/8" 7-5/16" 2-9/16" 4-1/8" 4" 2" 2 1/2" 2-3/4" 5.2000
MT40250 4" 2-1/2" 2-3/4" 2-7/8" 7-5/16" 2-9/16" 4-3/8" 4" 2" 2 1/2" 2-3/4" 5.6450
MT4030 4" 3" 3-1/2" 3-5/8" 7-5/16" 2-9/16" 5-1/4" 4-1/4" 2" 2 1/2" 2-3/4" 7.6250
MT60125 6" 1-1/4" 2-1/2" 2-5/8" 10-5/32" 3-11/16" 4-1/8" 4-7/8" 2-1/4" 2 5/8" 3-1/4" 8.5500
MT60150 6" 1-1/2" 2-1/2" 2-5/8" 10-5/32" 3-11/16" 4-1/8" 4-7/8" 2-1/4" 2 5/8" 3-1/4" 8.2000
MT6020 6" 2" 2-1/2" 2-5/8" 10-5/32" 3-11/16" 4-1/8" 5" 2-1/4" 2 5/8" 3-1/4" 8.4500
MT6030 6" 3" 3-1/2" 3-5/8" 10-5/32" 3-11/16" 5-1/4" 5-3/8" 2-1/4" 2 5/8" 3-1/4" 10.6500
