MS-08-08 by Kurt Hydraulics | Male SAE 45 Degree | Rigid | for 1/2" Hose ID

MS-08-08 by Kurt Hydraulics | Male SAE 45 Degree | Rigid | for 1/2" Hose ID

Sale price$24.74
by Kurt Hydraulics
MS - 45 deg. SAE Male Rigid
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $23.26
40–79 $21.03
80+ $18.56
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Male SAE 45 Flare
Special Properties:
  • Rigid

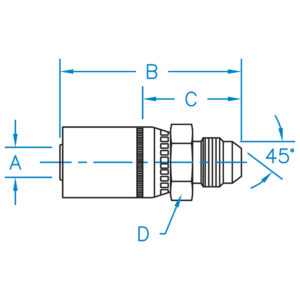

Part Number A B C D Hose ID
(In)		 Thread
MS-04-04 0.250 2.300 1.045 9/16 1/4" 7/16-20
MS-04-06 0.250 2.518 1.270 11/16 1/4" 5/8-18
MS-05-05 0.312 2.355 1.045 5/8 5/16" 1/2-20
MS-06-06 0.375 2.725 1.225 3/4 3/8" 5/8-18
MS-06-08 0.375 2.762 1.262 3/4 3/8" 3/4-16
MS-08-08 0.500 2.845 1.345 7/8 1/2" 3/4-16
MS-12-12 0.750 3.354 1.761 1-1/8 3/4" 1-1/16-14


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
