MPX-06-06-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 3/8" Male NPTF Swivel | Carbon Steel

MPX-06-06-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 3/8" Male NPTF Swivel | Carbon Steel

Sale price$10.94

Kurt Hydraulics
MPX - NPTF Male Pipe Swivel
Buy More, Save More!
Quantity Price Each
10–39 $10.28
40–79 $9.30
80+ $8.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Hose Barb
  • 3/8in Male NPTF

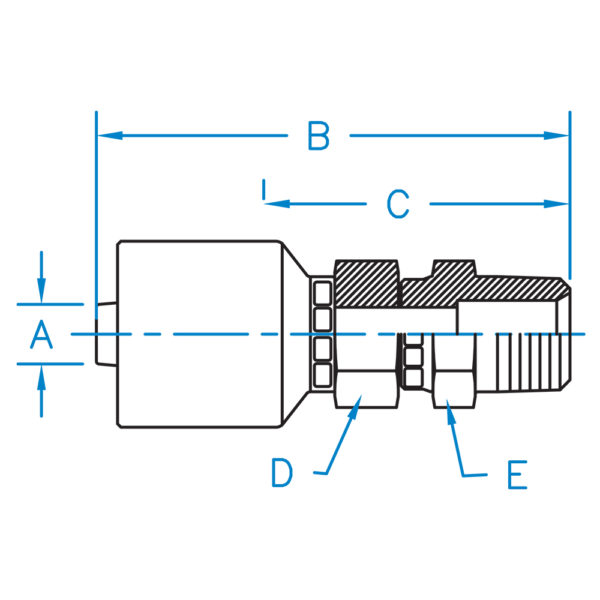

Part Number Hose I.D. (in.) B C D E Thread
MPX-04-02-K2 1/4" 2.32" 1.26" 9/16" 1/2" 1/8"-27
MPX-04-04-K2 1/4" 2.60" 1.54" 9/16" 11/16" 1/4"-18
MPX-04-06-K2 1/4" 2.60" 1.54" 9/16" 3/4" 3/8"-18
MPX-06-04-K2 3/8" 2.99" 1.62" 11/16" 11/16" 1/4"-18
MPX-06-06-K2 3/8" 2.99" 1.62" 11/16" 3/4" 3/8"-18
MPX-06-08-K2 3/8" 3.24" 1.87" 3/4" 15/16" 1/2"-14
MPX-08-06-K2 1/2" 3.02" 1.68" 11/16" 3/4" 3/8"-18
MPX-08-08-K2 1/2" 3.27" 1.93" 11/16" 7/8" 1/2"-14
MPX-08-12-K2 1/2" 3.33" 1.99" 1" 1-1/8" 3/4"-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
