MP-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male Pipe NPTF | for 2" Hose ID

MP-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male Pipe NPTF | for 2" Hose ID

Sale price$108.38

by Kurt Hydraulics
MP-JJ - Male Pipe NPTF Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $101.88
20–59 $92.12
60+ $81.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

Straight

Ends Configuration:
  • 2in Hose Barb
  • 2in Male NPTF

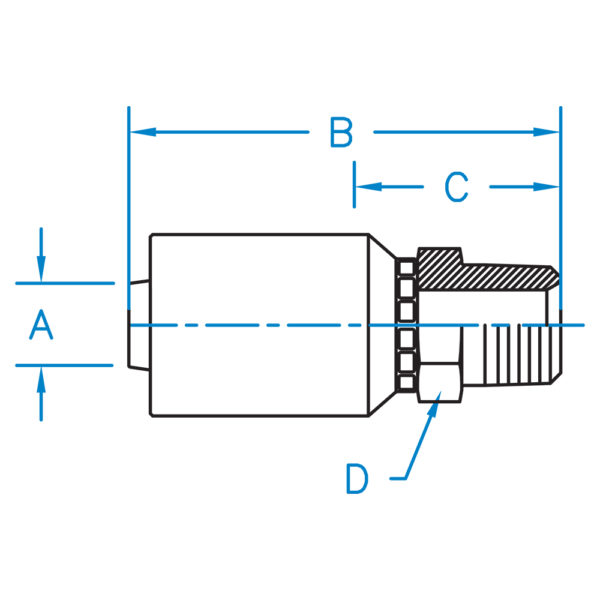

Part Number A B C D Hose ID
(In)		 Thread
MP-20-20-JJ 1.250 4.825 2.225 2.000 1-1/4" 1-1/4 - 11-1/11
MP-24-24-JJ 1.500 4.980 1.980 2-1/8 1-1/2" 1-1/2 - 11-1/2
MP-24-32-JJ 1.500 5.239 2.529 2-1/2 1-1/2" 2 - 11-1/2
MP-32-32-JJ 2.000 6.420 2.130 2-5/8 2.000" 2 - 11-1/2
MP-32-32-JJ-API 2.000 8.165 4.395 2-5/8 2.000" 2 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
