MJ-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male JIC | for 2" Hose ID

MJ-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Male JIC | for 2" Hose ID

Sale price$149.11

by Kurt Hydraulics
MP-JJ - 37 deg. JIC Male Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $140.16
20–59 $126.74
60+ $111.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

Straight

Ends Configuration:
  • 2in Hose Barb
  • 2in Male JIC

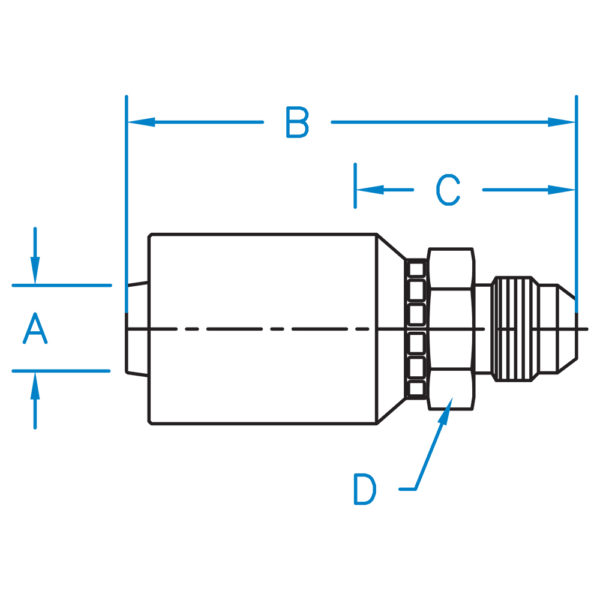

Part Number A B C D Hose ID
(In)		 Thread
MJ-20-20-JJ 1.250 4.813 2.213 2.000 1-1/4" 1-5/8 - 12
MJ-24-24-JJ 1.500 5.060 2.530 2-1/8 1-1/2" 1-7/8 - 12
MJ-32-32-JJ 2.000 6.720 3.130 2-5/8 2.000" 2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
