MJ-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Male 37° JIC | Carbon Steel
Kurt Hydraulics
37° JIC Male Rigid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.95 |
| 40–79 | $11.71 |
| 80+ | $10.34 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

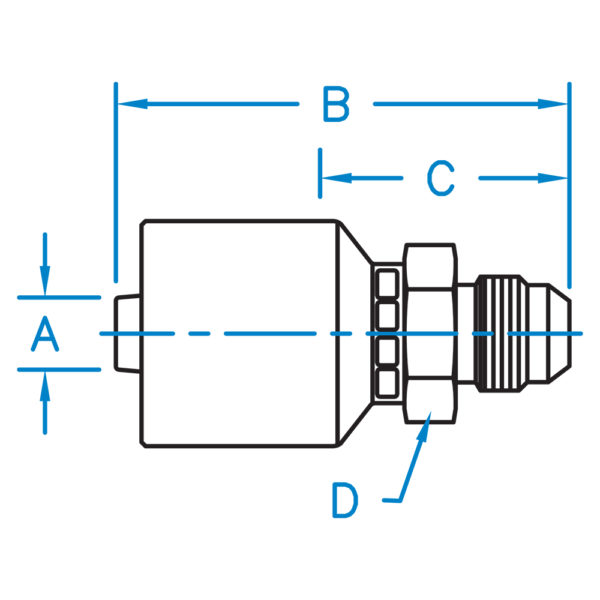

| Part Number | Hose I.D. (in.) | B | C | D | Thread |
|---|---|---|---|---|---|
| MJ-04-04-K2 | 1/4" | 2.02" | 0.94" | 9/16" | 7/16"-20 |
| MJ-04-05-K2 | 1/4" | 2.03" | 0.92" | 9/16" | 1/2"-20 |
| MJ-04-06-K2 | 1/4" | 2.03" | 0.95" | 9/16" | 9/16"-18 |
| MJ-06-05-K2 | 3/8" | 2.36" | 0.99" | 11/16" | 1/2"-20 |
| MJ-06-06-K2 | 3/8" | 2.12" | 0.99" | 3/4" | 9/16"-18 |
| MJ-06-08-K2 | 3/8" | 2.38" | 1.15" | 3/4" | 3/4"-16 |
| MJ-06-10-K2 | 3/8" | 2.72" | 1.35" | 1" | 7/8"-14 |
| MJ-08-06-K2 | 1/2" | 2.39" | 1.05" | 11/16" | 9/16"-18 |
| MJ-08-08-K2 | 1/2" | 2.57" | 1.23" | 7/8" | 3/4"-16 |
| MJ-08-10-K2 | 1/2" | 2.72" | 1.38" | 7/8" | 7/8"-14 |
| MJ-08-12-K2 | 1/2" | 2.85" | 1.51" | 1-1/8" | 1-1/16"-12 |
