MIX90-06-05-W by Kurt Hydraulics | Jump Size | Male SAE Inverted Flare | 90 Degree Bent Tube | Swivel | for 3/8" Hose ID
by Kurt Hydraulics
MIX90-W - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel
MIX90-W - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.59 |
| 40–79 | $15.90 |
| 80+ | $14.03 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

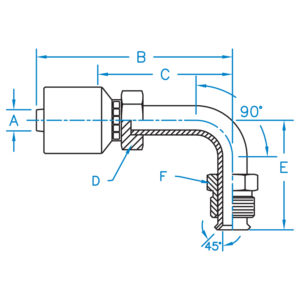

| Part Number | A | B | C | D | E | F | Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| MIX90-06-05-W | 0.375 | 2.591 | 1.221 | 0.750 | 1.660 | 1/2 | 3/8" | 1/2-20 |
| MIX90-06-06-W | 0.375 | 3.984 | 2.614 | 0.750 | 1.690 | 5/8 | 3/8" | 5/8-18 |
| MIX90-08-08-W | 0.500 | 3.486 | 2.146 | 0.875 | 1.880 | 3/4 | 1/2" | 3/4-18 |
