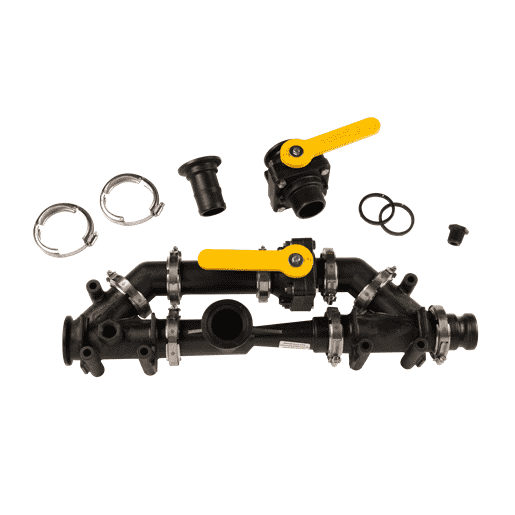

MIS220HBA by Banjo | Manifold Flange Connections | 2" Full Port Inductor Assembly | Part HB x Part A | 2" Hose Barb x 2" Male Adapter

MIS220HBA by Banjo | Manifold Flange Connections | 2" Full Port Inductor Assembly | Part HB x Part A | 2" Hose Barb x 2" Male Adapter

Sale price$547.85
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 2" & 3" full port flow by-pass.
  • Easy assembly/installation with manifold connections.
  • Installed after pump; suction completely empties inductor tank.
  • Keeps tank free of chemicals.

Part Number Description
MIS220HBA Full Port Inductor Assembly - Part HB x Part A - 2" Hose Barb x 2" Male Adapter

Replacement Parts
Item Description Part Number Quantity Needed per Assembly
1 3/4" Poly Pipe Plug PLUG075 1
2 2" Full Port Manifold Inductor MHV220A 1
Not Shown 220 Series Full Port Manifold EPDM Gasket With Rib M221G 10
4 220 Series Worm Screw Clamp FC220 10
5 2" x 2" Full Port 45° Flange M220CPG45 2
6 2" x 2" Full Port Flange x 6" Long M220CPG6 1
7 2" Full Port 45° Y Flange M220Y45 1
8 2" Full Port 45° Y Flange with 3/4" Gauge Port M220YG45 1
9 2" Full Port Manifold Valve Flange x Flange With FKM Seals MVS220CF 1
10 2" Full Port Flange x 2" Male Adapter M220A 2
11 2" Full Port Flange x 2" Hose Barb M220BRB 1
12 2" Full Port Manifold Valve Flange x Male NPT With FKM Seals MVSMT220FP 1

Additional Product Data:

Shape:

Tee

Material(s):
  • Polypropylene

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
