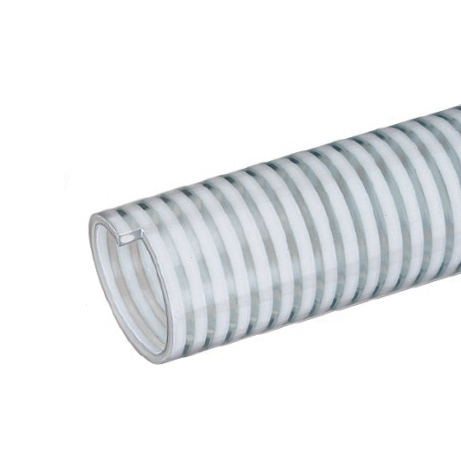

MILK-LT200X100 Tigerflex by Kuriyama | MILK LT Series | Low Temperature Food Grade Liquid Suction Hose | 2" ID | PVC | 100ft Length

MILK-LT200X100 Tigerflex by Kuriyama | MILK LT Series | Low Temperature Food Grade Liquid Suction Hose | 2" ID | PVC | 100ft Length

Sale price$715.33

Kuriyama Tigerflex MILK-LT™ Series Low Temperature Food Grade PVC Liquid Suction Hose


Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $672.41
15–29 $608.03
30+ $536.50
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • MILK LT Series
Color(s):
  • White/Off-White & Clear/Semi-Clear

SPECIFICATIONS

Application: Food grade liquids such as potable water, beer,wine and juice Ice transfer, Milk and dairy product transfer, Water suction - standard duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Precision Controlled ID and OD Dimensions - Facilitates insertion of sanitary fittings.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
  • "Cold-Flex" Materials (MILK-LT only) - Hose remains flexible in severe sub-zero temperatures.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
MILK-LT150X1000 1-1/2" 38.1mm 1.79" 45.5mm 75 PSI 50 PSI Full 26in. Hg 4" 100ft 0.45 lbs
MILK-LT200X100 2" 50.8mm 2.33" 59.2mm 75 PSI 50 PSI 28in. Hg 25in. Hg 5" 100ft 0.65 lbs
MILK-LT250X100 2-1/2" 63.5mm 2.87" 73.0mm 55 PSI 40 PSI 28in. Hg 24in. Hg 8" 100ft 0.84 lbs
MILK-LT300X100 3" 76.2mm 3.42" 86.9mm 55 PSI 40 PSI 28in. Hg 24in. Hg 11" 100ft 1.20 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
