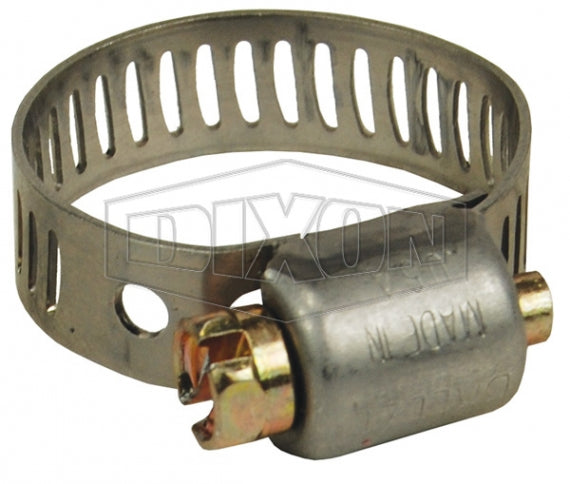

MH10 by Dixon Valve | Style MH | Miniature Worm Gear Clamp | 5/16" Band Width | Hose OD Range: from 9/16" to 1-1/16" | SAE 300 Stainless Steel Band | Zinc-Plated Steel Screw | Box of 10

MH10 by Dixon Valve | Style MH | Miniature Worm Gear Clamp | 5/16" Band Width | Hose OD Range: from 9/16" to 1-1/16" | SAE 300 Stainless Steel Band | Zinc-Plated Steel Screw | Box of 10

Sale price$21.85

Package Quantity: 10 EA

Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Maximum recommended torque 15 in. lbs.
  • Screw design: 1/4" slotted hex head.
Materials:
  • Style MH
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 1018 case-hardened, hex-free chrome zinc plated steel.
  • Style MAH
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 300-series stainless.
Approval:
  • Meets SAE J1508.
Style MH
Part Number		 Style MAH
Part Number		 Band Width Hose OD
From To
MH4 MAH4 5/16" 7/32" 5/8"
MH6 MAH6 5/16" 7/16" 25/32"
MH8 MAH8 5/16" 1/2" 29/32"
MH10 MAH10 5/16" 9/16" 1-1/16"
MH12 MAH12 5/16" 11/16" 1-1/4"
MH16 MAH16 5/16" 15/16" 1-1/2"
MH20 MAH20 5/16" 1-3/16" 1-3/4"

Additional Product Data:

Series:
  • Style MH
Material(s):
  • 300 Stainless Steel
  • Zinc-Plated Steel
Special Properties:
  • Mini/Micro Size

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
