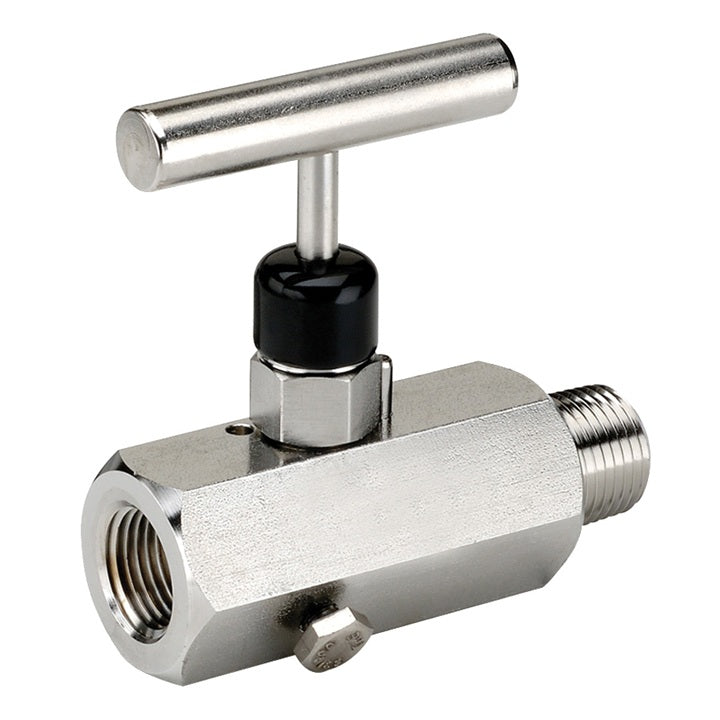

MFS704 by Dixon Valve | Block and Bleed Needle Valve | T Design Handle | Soft Seat | 1/2" Male NPT x 1/2" Female NPT | 316 Stainless Steel

MFS704 by Dixon Valve | Block and Bleed Needle Valve | T Design Handle | Soft Seat | 1/2" Male NPT x 1/2" Female NPT | 316 Stainless Steel

Sale price$269.24
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling.
  • Stem threads are rolled for strength and ease of operation.
  • 0.090" bleed hole located on bottom is controlled by a 1/4"-20 UNF-2A bleed screw.
Materials:
  • Stems: 316 stainless steel
Specifications:
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.
  • Orifice size is 0.187", flow coefficient: 0.44.
Part Number Material NPT Size Handle Style PSI @ 200°F
Hard Seat Male NPT to Female NPT
MFC602 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
MFC604 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
MFS602 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
MFS604 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
Soft Seat Male NPT to Female NPT
MFC702 Zinc Nickel Plated Steel 1/4-18 T Design Handle 6000 PSI
MFC704 Zinc Nickel Plated Steel 1/2-14 T Design Handle 6000 PSI
MFS702 316 Stainless Steel 1/4-18 T Design Handle 6000 PSI
MFS704 316 Stainless Steel 1/2-14 T Design Handle 6000 PSI

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Male NPT
  • 1/2in Female NPT
Material(s):
  • 316 Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
