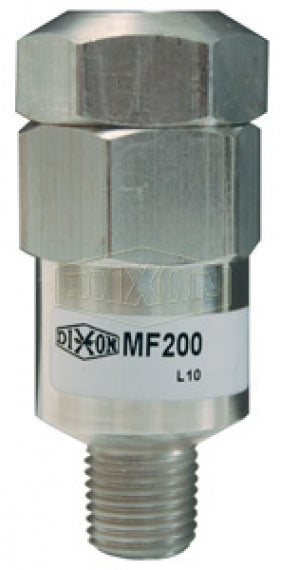

MF200 by Dixon Valve | Pneumatic Mini In-Line Filter | 1/4" Female NPT x 1/4" Male NPT | 17 SCFM Flow | Aluminum

MF200 by Dixon Valve | Pneumatic Mini In-Line Filter | 1/4" Female NPT x 1/4" Male NPT | 17 SCFM Flow | Aluminum

Sale price$56.46

Mini In-Line Filter On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Buy More, Save More!
Quantity Price Each
10–39 $53.07
40–79 $47.99
80+ $45.17
Discounts applied in cart/checkout.
Features:
  • Either port may be used as an inlet port.
  • Filter element rated at 5 microns.
Specifications:
  • Flow rating: 17 SCFM inlet pressure at 90 PSIG with 5 PSI pressure drop.
  • Maximum operating pressure: 200 PSIG
  • Temperature range: 32 °F to 150 °F (0 °C to 66 °C)
Aluminum
Part Number		 Female NPT Male NPT
MF200 1/4" 1/4"

Product Data:

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
