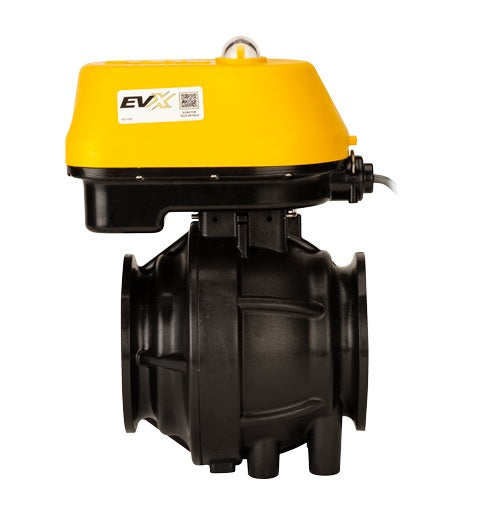

MEVX300 by Banjo | Manifold Flange Connection | MEVX On/Off Electric Valve | Full Port | 3" Pipe Size | 3" Opening Thru Ball | FKM Seals | Polypropylene

MEVX300 by Banjo | Manifold Flange Connection | MEVX On/Off Electric Valve | Full Port | 3" Pipe Size | 3" Opening Thru Ball | FKM Seals | Polypropylene

Sale price$1,139.59
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF 3" has 4 second response.
  • Regulating 3" has 4 second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • Zinc alloy lower actuator housing
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball
MEVX300 3" Full Port Electric Valve 125 PSI 3" 3"

Additional Product Data:

Series:
  • MEVX Series
MAWP:

125

Shape:

Straight

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
