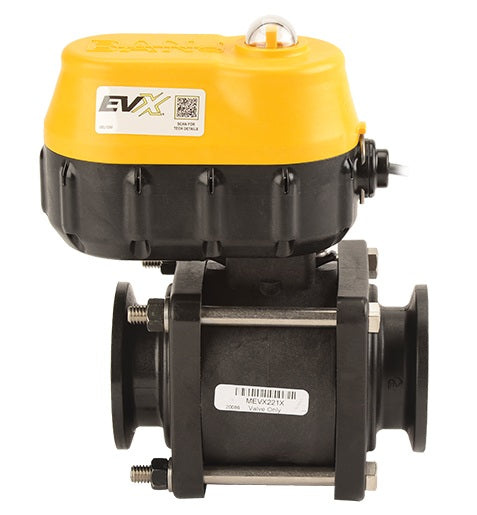

MEVX221 by Banjo | Manifold Flange Connection | MEVX On/Off Bolted Electric Valve | Full Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

MEVX221 by Banjo | Manifold Flange Connection | MEVX On/Off Bolted Electric Valve | Full Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

Sale price$604.47

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX On/Off Bolted Electric Valve | Full Port
Buy More, Save More!
Quantity Price Each
5–14 $568.20
15–29 $513.80
30+ $453.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • MEVX Series
MAWP:

125

Shape:

Straight
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF has 1-1/2 second response.
  • Regulating has 4 second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • On/Off Actuator rated to 500,000 cycles.
  • Regulating Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Bolted valves have the same exact dimensions as our legacy EV valves.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem.
  • Poly ball available on bolted standard port valves.
  • Stainless steel hardware.
  • Fiberglass reinforced polypropylene.
  • PTFE seats.
  • FKM stem seals.
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Handle
Kit		 Repair
Kit
MEVX200 2" Standard Port Electric Valve 250 PSI 2" 1-1/2" VP20153 EVX20200
MEVX221 2" Full Port Electric Valve 125 PSI 2" 2" VP20153 EVX25200

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
