MBX90-12-12-W by Kurt Hydraulics | Male O-Ring Boss | 90° Elbow | Swivel | Block Style | for 3/4" Hose ID

MBX90-12-12-W by Kurt Hydraulics | Male O-Ring Boss | 90° Elbow | Swivel | Block Style | for 3/4" Hose ID

Sale price$48.06

by Kurt Hydraulics
MBX90-W - Male Boss O-Ring 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $45.18
40–79 $40.85
80+ $36.05
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

90 Degree

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Male O-Ring Boss

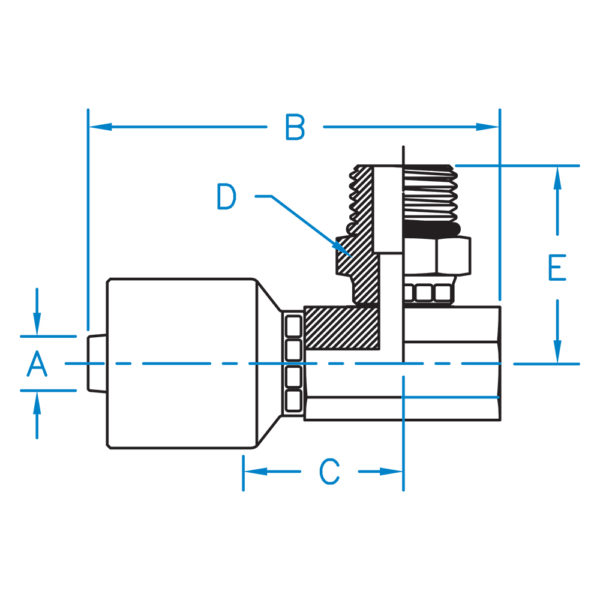

Part Number A B C D E Hose ID
(In)		 Thread
MBX90-06-06-W 0.375 2.555 1.185 3/4 1.545 3/8" 9/16-18
MBX90-06-08-W 0.375 2.555 1.185 15/16 1.632 3/8" 3/4-16
MBX90-08-08-W 0.500 2.642 1.327 15/16 1.675 1/2" 3/4-16
MBX90-08-10-W 0.500 2.642 1.327 1.000 1.740 1/2" 7/8-14
MBX90-12-12-W 0.750 N/A N/A 1-1/4 N/A 3/4" 1-1/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
