MBX90-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Male O-Ring Boss Swivel Block Style | 90° Elbow | Carbon Steel
Kurt Hydraulics
MBX - Male Boss O-Ring 90° Swivel Block Style
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $54.10 |
| 40–79 | $48.92 |
| 80+ | $43.16 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

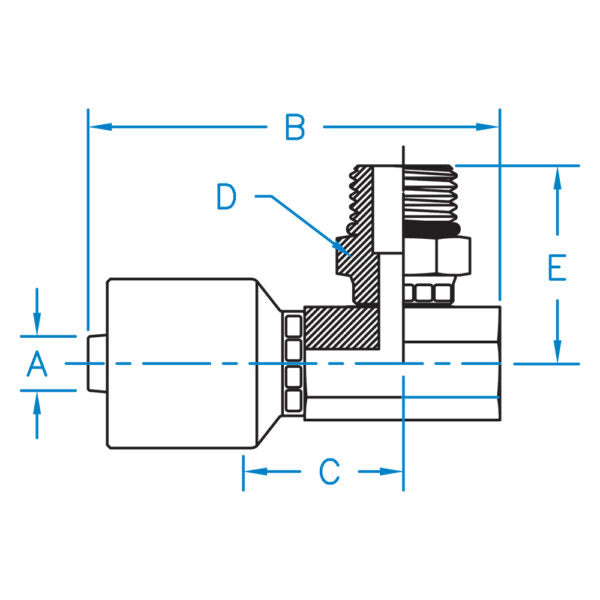

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| MBX90-04-04-K2 | 1/4" | 2.03" | 0.56" | 11/16" | 1.43" | 7/16 – 20 |
| MBX90-04-06-K2 | 1/4" | 2.03" | 0.56" | 3/4" | 1.46" | 9/16 – 18 |
| MBX90-06-06-K2 | 3/8" | 2.56" | 1.19" | 3/4" | 1.55" | 9/16 – 18 |
| MBX90-06-08-K2 | 3/8" | 2.56" | 1.19" | 15/16" | 1.63" | 3/4 – 16 |
| MBX90-06-10-K2 | 3/8" | 3.01" | 1.11" | 1" | 1.71" | 7/8 – 14 |
| MBX90-08-08-K2 | 1/2" | 2.64" | 1.33" | 15/16" | 1.68" | 3/4 – 16 |
| MBX90-08-10-K2 | 1/2" | 2.64" | 1.33" | 1" | 1.74" | 7/8 – 14 |
