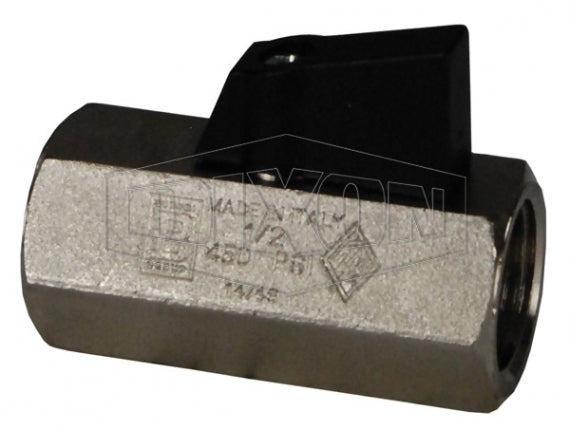

MBV50 by Dixon Valve | Mini Ball Valve | Standard Port | 1/2" Female NPT x 1/2" Female NPT | Nickel Plated Brass

MBV50 by Dixon Valve | Mini Ball Valve | Standard Port | 1/2" Female NPT x 1/2" Female NPT | Nickel Plated Brass

Sale price$29.23
Quantity Price Each
50–99 $26.31
100+ $23.38
Discounts applied at checkout.

Dixon Valve & Coupling
Mini Ball Valve | Nickel Plated Brass

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Material(s):
  • Nickel Plated Brass
Features:
  • Blow-out proof stem.
Materials:
  • Body: Nickel Plated Brass.
  • PTFE seats and FKM stem seal.
Specifications:
  • Maximum temperature 330°F (166°C).
  • Pressure rating: 450 PSI.
Approvals:
  • Canadian Standard Association approved.
Part Number Female NPT x Female NPT Port
MBV12 1/8" Standard
MBV25 1/4" Standard
MBV38 3/8" Standard
MBV50 1/2" Standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
