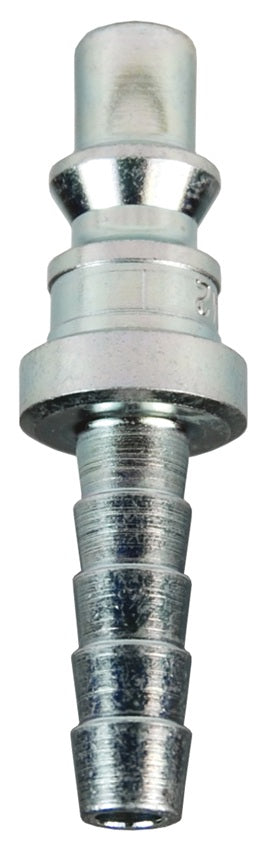

M3S3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 3/8" Hose ID x 3/8" ARO Interchange | Plug | Steel
M3S3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 3/8" Hose ID x 3/8" ARO Interchange | Plug | Steel

M3S3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 3/8" Hose ID x 3/8" ARO Interchange | Plug | Steel

Sale price$15.00

Dixon Valve & Coupling
Pneumatic Coupling: M-Series ARO Interchange Plug (Standard Hose Barb)
Buy More, Save More!
Quantity Price Each
10–39 $14.10
40–79 $12.75
80+ $11.25
Discounts applied in cart/checkout.

Product Data:

Series:
  • M Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male ARO 210 QD Interchange
  • 3/8in Hose Barb
Compatibility & Interchange:
  • Automatic couplings interchange with ARO 210/310 and Hansen 210/310
  • Manual Couplings Interchange with Parker 50-Series and Amflo Type 'B'
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
M-Series | ARO Interchange Plug (Standard Hose Barb)
Part Number Coupling Type Body Size Hose ID Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
M2S2 Plug/Male 1/4" 1/4" Steel 2.00"
(50.8mm)		 0.56"
(14.2mm)		 -
  • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
  • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
    M2S3 Plug/Male 1/4" 3/8" Steel 2.00"
    (50.8mm)    		 0.56"
    (14.2mm)    		 -
    • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
    • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
      M3S3 Plug/Male 3/8" 3/8" Steel 2.25"
      (57.2mm)      		 0.88"
      (22.4mm)      		 -
      • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 3,300 PSI (228 bar)

        Dixon Valve & Coupling

        Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
