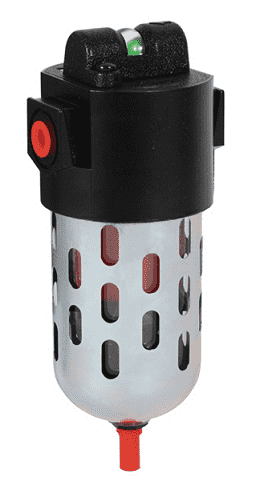

M26-03M Dixon Valve Wilkerson 3/8" Modular Coalescing Filter with Standard Transparent Bowl and Guard - Manual Drain - 65.5 SCFM
Dixon

M26-03M Dixon Valve Wilkerson 3/8" Modular Coalescing Filter with Standard Transparent Bowl and Guard - Manual Drain - 65.5 SCFM

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • For removal of extremely fine oil mists, oil aerosols and microscopic particles.
  • A standard airline filter should be installed as a pre-filter when using a coalescing filter.
  • 0.5 micron type B and 0.003 micron type D elements are optional.
  • Differential pressure indicator changes from green to red with pressure loss.
  • 0.01 micron type C element.
  • 10 oz. bowl.
  • Can be installed in modular system.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Compact Transparent Bowl and Guard
M26-02A 1/4" 55.0 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.6250
M26-03A 3/8" 65.5 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5850
M26-04A 1/2" 79.5 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5500
M26-02M 1/4" 55.0 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.3100
M26-03M 3/8" 65.5 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5310
M26-04M 1/2" 79.5 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5200
