M-DH16-30-42 by Kurt Hydraulics | Male DIN Heavy Universal Seat | Rigid | for 1" Hose ID

M-DH16-30-42 by Kurt Hydraulics | Male DIN Heavy Universal Seat | Rigid | for 1" Hose ID

Sale price$26.35
by Kurt Hydraulics
M-DH04 - Din Heavy Universal Seat Male Rigid
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $24.77
40–79 $22.40
80+ $19.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • S42 Male DIN

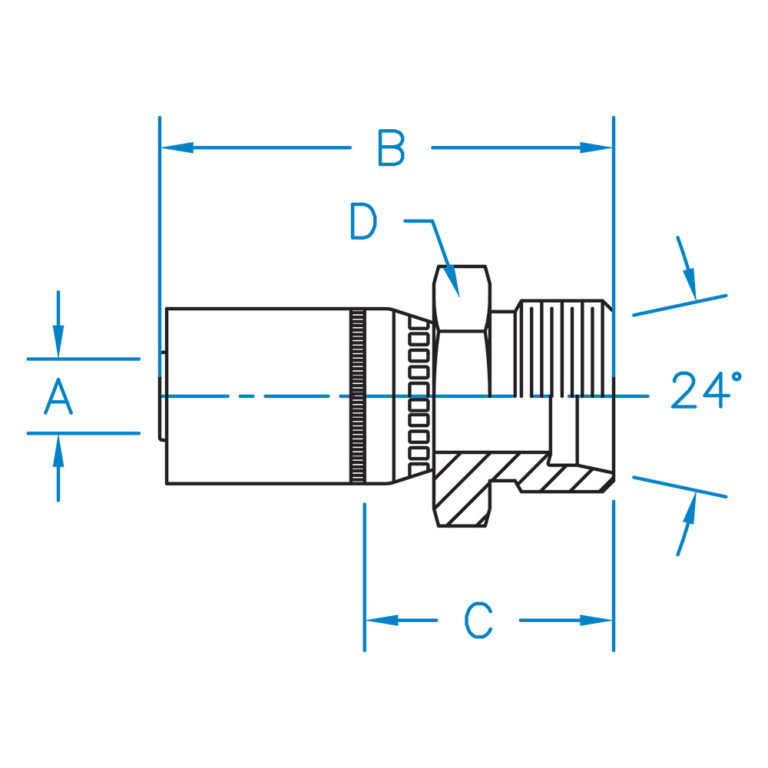

Part Number A B C D Hose ID
(In)		 Thread
M-DH04-08-16 0.250 N/A N/A N/A 1/4" M16 X 1.5
M-DH04-10-18 0.250 2.377 1.122 11/16 1/4" M18 X 1.5
M-DH06-10-18 0.375 N/A N/A N/A 3/8" M18 X 1.5
M-DH06-12-20 0.375 2.713 1.213 15/16 3/8" M20 X 1.5
M-DH06-14-22 0.375 2.726 1.226 15/16 3/8" M22 X 1.5
M-DH08-16-24 0.500 2.795 1.295 1.000 1/2" M24 X 1.5
M-DH10-20-30 0.625 2.890 1.390 1-3/16 5/8" M30 X 2.0
M-DH12-25-36 0.750 3.162 1.569 1-1/2 3/4" M36 X 2.0
M-DH16-30-42 1.000 3.397 1.663 1-11/16 1.000" M36 X 2.0


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
