M-BSPT-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Male BSPT 60° Cone | Carbon Steel

M-BSPT-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Male BSPT 60° Cone | Carbon Steel

Sale price$26.96

Kurt Hydraulics
Male British Standard Pipe 60° Cone Rigid
Buy More, Save More!
Quantity Price Each
10–39 $25.34
40–79 $22.92
80+ $20.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb
  • 1/4in Male BSPT

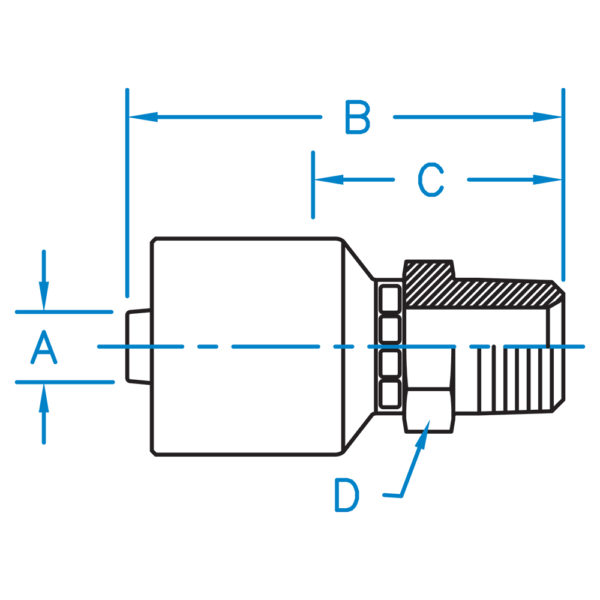

Part Number Hose I.D. (in.) B C D Thread
M-BSPT-04-02-K2 1/4" 1.85" 0.79" 9/16" 1/8 – 27
M-BSPT-04-04-K2 1/4" 2.04" 0.98" 9/16" 1/4 – 19
M-BSPT-04-06-K2 1/4" 2.12" 1.06" 11/16" 3/8 – 19
M-BSPT-06-06-K2 3/8" 2.45" 1.08" 11/16" 3/8 – 19
M-BSPT-06-08-K2 3/8" 2.71" 1.34" 7/8" 1/2 – 14
M-BSPT-08-06-K2 1/2" 2.48" 1.14" 7/8" 3/8 – 19
M-BSPT-08-08-K2 1/2" 2.73" 1.39" 7/8" 1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
