M-BSPT-04-02-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/8" Male BSPT 60° Cone | Carbon Steel
Kurt Hydraulics
Male British Standard Pipe 60° Cone Rigid
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $72.16 |
| 20–59 | $65.25 |
| 60+ | $57.58 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

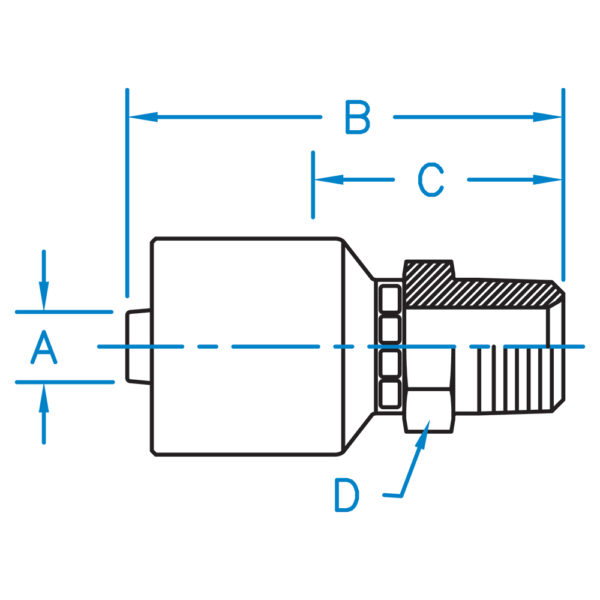

| Part Number | Hose I.D. (in.) | B | C | D | Thread |
|---|---|---|---|---|---|
| M-BSPT-04-02-K2 | 1/4" | 1.85" | 0.79" | 9/16" | 1/8 – 27 |
| M-BSPT-04-04-K2 | 1/4" | 2.04" | 0.98" | 9/16" | 1/4 – 19 |
| M-BSPT-04-06-K2 | 1/4" | 2.12" | 1.06" | 11/16" | 3/8 – 19 |
| M-BSPT-06-06-K2 | 3/8" | 2.45" | 1.08" | 11/16" | 3/8 – 19 |
| M-BSPT-06-08-K2 | 3/8" | 2.71" | 1.34" | 7/8" | 1/2 – 14 |
| M-BSPT-08-06-K2 | 1/2" | 2.48" | 1.14" | 7/8" | 3/8 – 19 |
| M-BSPT-08-08-K2 | 1/2" | 2.73" | 1.39" | 7/8" | 1/2 – 14 |
